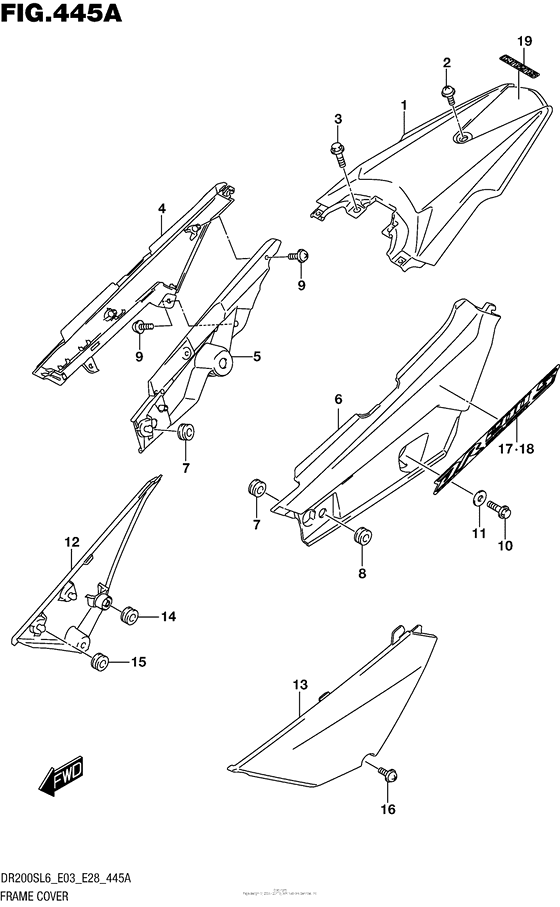

Frame Cover Diagram Suzuki DR200 DR200S
- Year
- 2016
- Model code
- DR200SL6
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1-1
|
1-1
47311-49J00-YU1 COVER,FRAME CENTER |
47311-49J00-YU1 |
from US $60.35 |
||
|
1-2
|
1-2
47311-49J00-YUD COVER,FRAME CENTER |
47311-49J00-YUD |
from US $54.83 |
||
|
2
|
2
09139-06188-000 SCREW(6X12) |
09139-06188-000 |
from US $5.07 |
||
|
3
|
3
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
4-1
|
4-1
47121-49J00-YU1 COVER,FRAME UPPER,R |
47121-49J00-YU1 |
from US $53.36 |
||
|
4-2
|
4-2
47121-49J00-YUD COVER,FRAME UPPER,R |
47121-49J00-YUD |
from US $48.21 |
||
|
5
|
5
47131-49J00-000 COVER,FRAME INNER,R |
47131-49J00-000 |
from US $18.11 |
||
|
6-1
|
6-1
47221-49J00-YU1 COVER,FRAME UPPER,L(YELLOW) |
47221-49J00-YU1 |
US $111.54 |
||
|
6-2
|
6-2
47221-49J00-YUD COVER,FRAME UPPER,L(GRAY) |
47221-49J00-YUD |
from US $48.21 |
||
|
7
|
7
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.40 |
||
|
8
|
8
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
9
|
9
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
10
|
10
09135-08012-000 BOLT(8X25) |
09135-08012-000 |
from US $3.54 |
||
|
11
|
11
09169-08045-000 WASHERWasher, rear |
09169-08045-000 |
from US $1.68 |
||
|
12-1
|
12-1
47111-49J00-30H COVER,FRAME,R(WHITE) |
47111-49J00-30H |
from US $48.21 |
||
|
12-2
|
12-2
47111-49J00-019 COVER,FRAME,R |
47111-49J00-019 |
from US $48.21 |
||
|
13-1
|
13-1
47211-49J00-30H COVER,FRAME,L(WHITE) |
47211-49J00-30H |
from US $48.21 |
||
|
13-2
|
13-2
47211-49J00-019 COVER,FRAME,L |
47211-49J00-019 |
from US $48.21 |
||
|
14
|
14
47161-08G00-000 CUSHIONCushion, muffler |
47161-08G00-000 |
from US $4.71 |
||
|
15
|
15
09320-08029-000 CUSHION |
09320-08029-000 |
from US $1.44 |
||
|
16
|
16
09139-06169-000 SCREW(6X16) |
09139-06169-000 |
from US $4.96 |
||
|
17
|
17
68135-49J00-GYY EMBLEM,FRAME COVER,R |
68135-49J00-GYY |
US $19.55 |
||
|
18
|
18
68145-49J00-GYY EMBLEM,FRAME COVER,L |
68145-49J00-GYY |
US $19.55 |
||
|
19-1
|
19-1
68171-28H00-YHG EMBLEM,SUZUKI(GRAY) |
68171-28H00-YHG |
US $8.35 |
||
|
19-2
|
19-2
68171-28H00-YD8
EMBLEM,SUZUKI
|
68171-28H00-YD8 |
— | ||
| replacement | |||||
|
19-2
|
19-2
68171-28H01-YD8 Emblem,suzuki |
68171-28H01-YD8 |
from US $5.19 |
||
