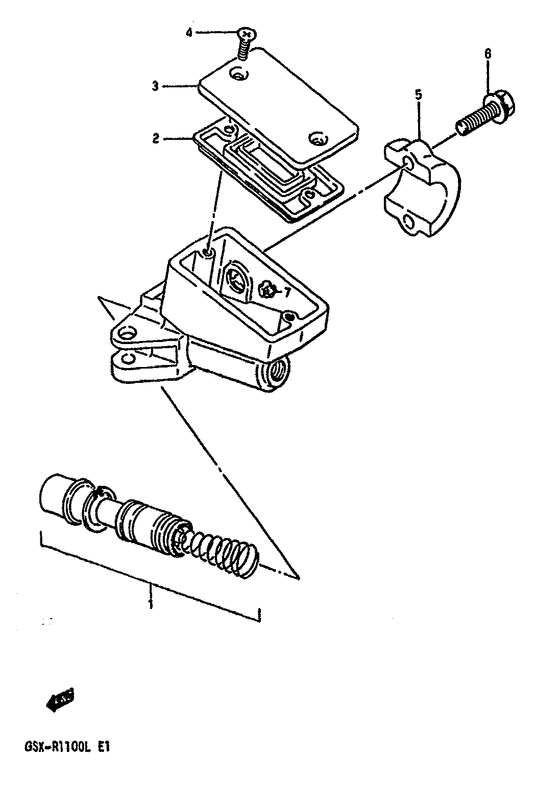

Front Master Cylinder Diagram Suzuki GSX-R1100
- Year
- 1989
- Model code
- GSX-R1100K(K/L) K
- Engine Capacity
- 1100
- Model
- GSX-R1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
6
|
6
59600-40C00-000 Cylinder assy,front masterModel k to 59600-40c01 |
59600-40C00-000 |
US $150.19 |
||
| replacement | |||||
|
6
|
6
59600-41C01-000
CYLINDER ASSY,FR MASTER
Model k to 59600-40c01 |
59600-41C01-000 |
— | ||
|
6
|
6
59600-40C01-000
Cylinder assy,front master
Model l |
59600-40C01-000 |
— | ||
| replacement | |||||
|
6
|
6
59600-41C01-000
CYLINDER ASSY,FR MASTER
Model l |
59600-41C01-000 |
— | ||
|
1
|
1
59600-45850-000 PISTON & CUP SETPiston / cup set |
59600-45850-000 |
from US $40.48 |
||
|
2
|
2
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
3
|
3
59669-24A00-000 CAPModel k |
59669-24A00-000 |
from US $24.84 |
||
|
3
|
3
59669-24A01-000
Cap
Model l |
59669-24A01-000 |
— | ||
| replacement | |||||
|
3
|
3
59669-24A00-000 CAPModel l |
59669-24A00-000 |
from US $24.84 |
||
|
4
|
4
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.52 |
||
|
5
|
5
59671-19B00-000 HOLDER |
59671-19B00-000 |
from US $12.77 |
||
|
6
|
6
59675-17C00-000
Bolt
|
59675-17C00-000 |
— | ||
| replacement | |||||
|
6
|
6
59675-19C00-000 BOLT(6X25) |
59675-19C00-000 |
from US $1.68 |
||
|
7
|
7
59664-48B00-000 PROTECTOR |
59664-48B00-000 |
from US $5.37 |
||
