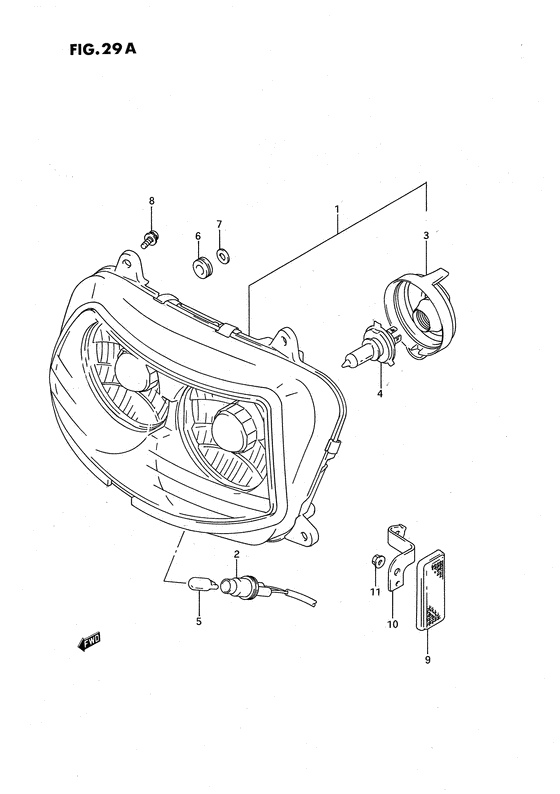

Headlamp (Model r/s) Diagram Suzuki GSX-R750
- Year
- 1992
- Model code
- GSX-R750WN(E2) N
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-18E10-999
Headlamp assy
Model r |
35100-18E10-999 |
— | ||
|
1
|
1
35100-18E11-999
Headlamp assy
Model s |
35100-18E11-999 |
— | ||
|
1
|
1
35100-18E00-999
Headlamp assy
E24 |
35100-18E00-999 |
— | ||
|
1
|
1
35100-18E50-999
Headlamp assy
Model r e4,e18,e22,e25,, e34,e39 |
35100-18E50-999 |
— | ||
| replacement | |||||
|
1
|
1
35100-18E51-999
HEADLAMP ASSY
Model r e4,e18,e22,e25,, e34,e39 |
35100-18E51-999 |
— | ||
|
1
|
1
35100-18E51-999
HEADLAMP ASSY
Model s e4,e18,e22,e25,e34,, e37,e39 |
35100-18E51-999 |
— | ||
|
2
|
2
35173-18E00-000
COVER,SOCKET
|
35173-18E00-000 |
— | ||
|
3
|
3
36118-18E50-000
Socket assy
Model r |
36118-18E50-000 |
— | ||
| replacement | |||||
|
3
|
3
36118-18E51-000
SOCKET ASSY
Model r |
36118-18E51-000 |
— | ||
|
3
|
3
36118-18E51-000
SOCKET ASSY
Socket assy; Model s |
36118-18E51-000 |
— | ||
|
4
|
4
09471-12060-000 BULB(12V60/55W,H4)Bulb (12v,60/55w,h4) Bulb (12v,60/55w); |
09471-12060-000 |
from US $39.19 |
||
|
4
|
4
09471-12060-000 BULB(12V60/55W,H4)Bulb (12v,60/55w,h4) Bulb (12v,60/55w) lh; E4,e18,e22,e25,e34,e37,e39 |
09471-12060-000 |
from US $39.19 |
||
|
4
|
4
09471-12122-000 BULB(12V55W/H1/P14.5S/OSRA)Bulb (12v,55w) rh; E4,e18,e22,e25,e34,e37,e39 |
09471-12122-000 |
US $200.60 |
||
|
5
|
5
09471-12081-000
Bulb (12v,5w)
Bulb (12v,5w); |
09471-12081-000 |
— | ||
| replacement | |||||
|
5
|
5
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v,5w); |
09471-12216-000 |
from US $2.77 |
||
|
6
|
6
09320-08051-000
CUSHION
|
09320-08051-000 |
— | ||
| replacements | |||||
|
6
|
6
09320-08066-000 CUSHION |
09320-08066-000 |
from US $4.42 |
||
|
6
|
6
09320-08515-000 Cushion(8.4X18X6) |
09320-08515-000 |
from US $3.84 |
||
|
7
|
7
09160-05037-000 WASHER(5.5X16X1.2)Washer; |
09160-05037-000 |
from US $0.91 |
||
|
8
|
8
03511-05163-000
Screw
|
03511-05163-000 |
— | ||
| replacement | |||||
|
8
|
8
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
9
|
9
35950-14A00-000 REFLECTOR,REFLEX FRReflex-reflector assy, fr Reflector, front side; E39 |
35950-14A00-000 |
from US $21.60 |
||
|
10
|
10
35956-17D00-000
BRACKET,FR SIDE RR,R
Bracket, rh; E39 |
35956-17D00-000 |
— | ||
|
10
|
10
35957-17D00-000
BRACKET,FR SIDE RR,L
Bracket, lh; E39 |
35957-17D00-000 |
— | ||
|
11
|
11
08310-00053-000
Nut
E39 |
08310-00053-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-0005A-000 NUTE39 |
08310-0005A-000 |
from US $0.80 |
||
