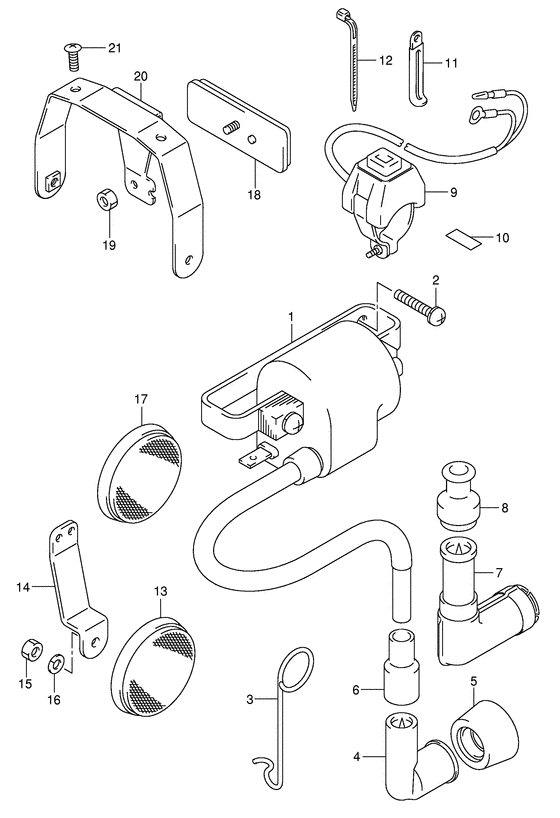

Electrical Diagram Suzuki JR50
- Year
- 2006
- Model code
- JR50K6(P3/P28) K6
- Engine Capacity
- 50
- Model
- JR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33410-35340-000 UNIT & COIL ASSY,IGNITIONUnit & coil assy, ignition |
33410-35340-000 |
from US $157.87 |
||
|
2
|
2
02112-06207-000 SCREWScrew; |
02112-06207-000 |
from US $0.80 |
||
|
3
|
3
58626-04410-000 CLIPGuide, high tension cord |
58626-04410-000 |
from US $2.24 |
||
|
4
|
4
33510-35411-000 Cap,spark plugCap assy, spark plug Cap, spark plug; |
33510-35411-000 |
from US $32.44 |
||
|
5
|
5
33541-69010-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug; |
33541-69010-000 |
from US $4.86 |
||
|
6
|
6
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
7
|
7
33510-19G00-000 CAP ASSY,SPARK PLUGE28 |
33510-19G00-000 |
US $24.29 |
||
|
8
|
8
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension lord; E28 |
33542-38B00-000 |
from US $1.52 |
||
|
9
|
9
37820-14X50-000 SWITCH ASSY,ENGINE STOPSwitch assy, engine stop |
37820-14X50-000 |
from US $20 |
||
|
10
|
10
37238-46401-000
LABEL,ENGINE STEP SWITCH
|
37238-46401-000 |
— | ||
|
10
|
10
37238-46411-000 LABEL,ENGINE STEP SWITCHLabel, stop switch P28 |
37238-46411-000 |
US $1.77 |
||
|
11
|
11
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
12
|
12
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
13
|
13
35950-14A00-000 REFLECTOR,REFLEX FRReflex-reflector assy, fr Reflex reflector assy, fr side; P28 |
35950-14A00-000 |
from US $21.60 |
||
|
14
|
14
35975-09AA0-000
BRACKET,FR SIDE RR
P28 |
35975-09AA0-000 |
— | ||
|
15
|
15
08310-00053-000
Nut
Nut, fr side rr; P28 |
08310-00053-000 |
— | ||
| replacement | |||||
|
15
|
15
08310-0005A-000 NUTNut, fr side rr; P28 |
08310-0005A-000 |
from US $0.80 |
||
|
16
|
16
08321-01053-000
Lock washer
P28 |
08321-01053-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0105B-000 WASHER,LOCKP28 |
08321-0105B-000 |
from US $0.77 |
||
|
16
|
16
08321-0105A-000 WASHER,LOCKP28 |
08321-0105A-000 |
from US $0.76 |
||
|
17
|
17
35970-14A10-000 REFLEX REFLECTOR,RRReflector assy, rear side Reflex reflector assy, rr side; |
35970-14A10-000 |
from US $21.57 |
||
|
18
|
18
35970-07F00-000
Reflector assy, rear side
Reflex reflector assy, rear; P28 |
35970-07F00-000 |
— | ||
| replacement | |||||
|
18
|
18
35970-07F01-000 REFLECTOR ASSY,RRReflex reflector assy, rear; P28 |
35970-07F01-000 |
from US $10.42 |
||
|
19
|
19
08310-00053-000
Nut
Nut, rear rr; P28 |
08310-00053-000 |
— | ||
| replacement | |||||
|
19
|
19
08310-0005A-000 NUTNut, rear rr; P28 |
08310-0005A-000 |
from US $0.80 |
||
|
20
|
20
35976-04450-000
BRACKET,SIDE & RR
P28 |
35976-04450-000 |
— | ||
|
21
|
21
02142-06127-000 SCREWScrew, rear rr bracket; P28 |
02142-06127-000 |
from US $0.76 |
||
