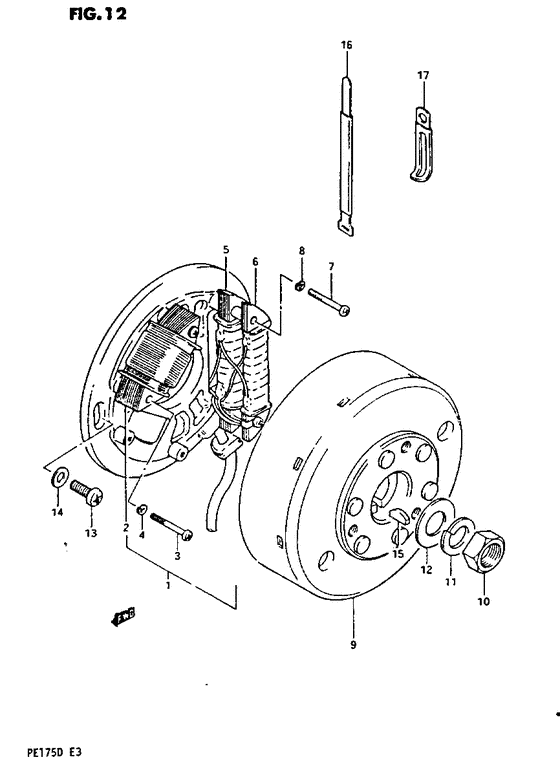

Magneto Diagram Suzuki PE175
- Year
- 1983
- Model code
- PE175D(Z/D) D
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-40521-000
Stator assy
|
32101-40521-000 |
— | ||
|
2
|
2
32120-41420-000
Lighting coil no.1
|
32120-41420-000 |
— | ||
| replacement | |||||
|
2
|
2
32101-40521-000
Stator assy
|
32101-40521-000 |
— | ||
|
3
|
3
09125-04019-000
Screw
|
09125-04019-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-04023-000 SCREW(4X30)Screw (4x30) |
09125-04023-000 |
from US $2.10 |
||
|
4
|
4
08321-21047-000
Lock washer
|
08321-21047-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
5
|
5
32140-40520-000
Coil primary
|
32140-40520-000 |
— | ||
| replacement | |||||
|
5
|
5
32140-39160-000 COIL,PRIMARY |
32140-39160-000 |
US $101.27 |
||
|
6
|
6
32150-40520-000 COIL,PRIMARYCoil primary |
32150-40520-000 |
from US $43.42 |
||
|
7
|
7
09125-04019-000
Screw
|
09125-04019-000 |
— | ||
| replacement | |||||
|
7
|
7
09125-04023-000 SCREW(4X30)Screw (4x30) |
09125-04023-000 |
from US $2.10 |
||
|
8
|
8
08321-21047-000
Lock washer
|
08321-21047-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
9
|
9
32102-40521-000
Rotor fly wheel
|
32102-40521-000 |
— | ||
| replacement | |||||
|
9
|
9
32102-40541-000
Rotor assy
|
32102-40541-000 |
— | ||
|
10
|
10
09140-10003-000
Magneto fitting nut
|
09140-10003-000 |
— | ||
| replacement | |||||
|
10
|
10
09140-10041-000 NUT |
09140-10041-000 |
from US $1.96 |
||
|
11
|
11
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
11
|
11
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
12
|
12
08322-21108-000
Washer, wheel set
|
08322-21108-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
13
|
13
02112-06167-000 SCREWScrew 6x16; |
02112-06167-000 |
from US $0.80 |
||
|
14
|
14
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
15
|
15
08341-31049-000
Key
|
08341-31049-000 |
— | ||
| replacement | |||||
|
15
|
15
09420-04008-000 KEY |
09420-04008-000 |
from US $1.76 |
||
|
16
|
16
09407-11301-000
Clamp (l:110)
|
09407-11301-000 |
— | ||
| replacements | |||||
|
16
|
16
09407-18301-000
CLAMP
|
09407-18301-000 |
— | ||
|
16
|
16
09407-18302-000 Clamp |
09407-18302-000 |
from US $2.08 |
||
|
17
|
17
09404-06412-000
Clamp
|
09404-06412-000 |
— | ||
| replacements | |||||
|
17
|
17
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
17
|
17
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
