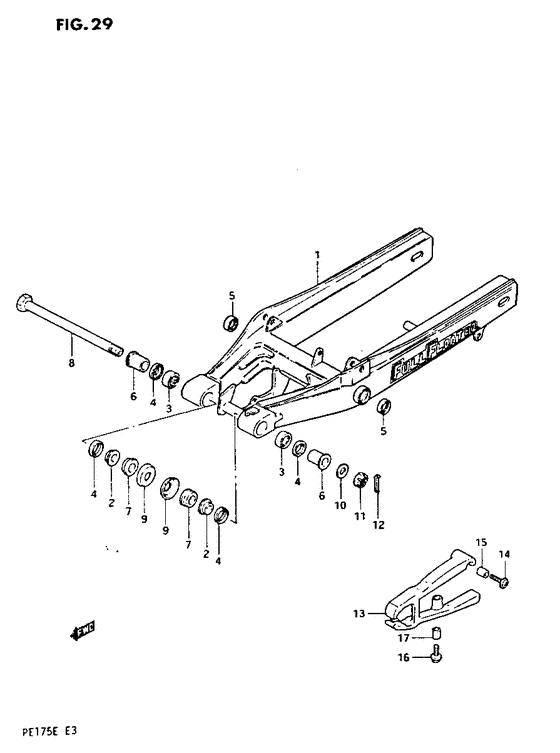

Rear swinging arm Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-14420-000
Rear swinging arm set
|
61000-14420-000 |
— | ||
|
2
|
2
61261-14101-000 BUSH,RR SWINGINGARM PIVOTBushing swing arm p Bushing swing arm p; |
61261-14101-000 |
from US $12.29 |
||
|
3
|
3
09263-20041-000 BEARING(20X27X20)Rn 20x27x20 brg 16x2; |
09263-20041-000 |
from US $15.46 |
||
|
4
|
4
09285-20005-000
Oil seal
|
09285-20005-000 |
— | ||
| replacement | |||||
|
4
|
4
09283-20031-000 SEAL,OIL(20X27X5)Oil seal |
09283-20031-000 |
from US $3.19 |
||
|
5
|
5
09285-19001-000
Oil seal rr bk
|
09285-19001-000 |
— | ||
|
6
|
6
61251-14100-000
SPACER,RR SWGARM PIVOT
Spacer rr swing p; |
61251-14100-000 |
— | ||
|
7
|
7
61252-14100-000 SPACER,RR SWGARM PIVOT INNERSpacer, inner Spacer swing pivot; |
61252-14100-000 |
US $16.75 |
||
|
8
|
8
61211-14102-000
SHAFT,RR SWINGINGARM PIVOT
|
61211-14102-000 |
— | ||
|
9
|
9
61262-40400-000
COVER,RR SWGARM DUST SEAL
Cover rear swing arm; |
61262-40400-000 |
— | ||
| replacement | |||||
|
9
|
9
61262-40401-000 Seal,dustCover rear swing arm; |
61262-40401-000 |
from US $4.86 |
||
|
10
|
10
08322-11148-000
Washer
|
08322-11148-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01147-000 WASHER |
08322-01147-000 |
from US $0.80 |
||
|
11
|
11
08314-41148-000
Nut
|
08314-41148-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4014B-000 NUTNut, hub |
08314-4014B-000 |
from US $4.53 |
||
|
12
|
12
04111-30308-000
30 x 30 cotter
30 x 30 cotter pin; |
04111-30308-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-3030A-000 PIN30 x 30 cotter pin; |
04111-3030A-000 |
from US $0.76 |
||
|
13
|
13
61273-14410-000
BUFFER,CHAIN TOUCH DEFENSE
|
61273-14410-000 |
— | ||
|
14
|
14
61275-14400-000
Screw ch touch
Screw ch touch upper; |
61275-14400-000 |
— | ||
|
15
|
15
09180-06011-000
Spacer
|
09180-06011-000 |
— | ||
| replacement | |||||
|
15
|
15
09180-06263-000 SPACER(6.5X9X9) |
09180-06263-000 |
from US $1.52 |
||
|
16
|
16
61275-14410-000
Screw ch touch
Screw ch touch lower; |
61275-14410-000 |
— | ||
|
17
|
17
09180-06067-000 SPACER(6.5X10.5X22.5)Spacer, ignition coil Chain guide low spac lower; |
09180-06067-000 |
from US $2.38 |
||
