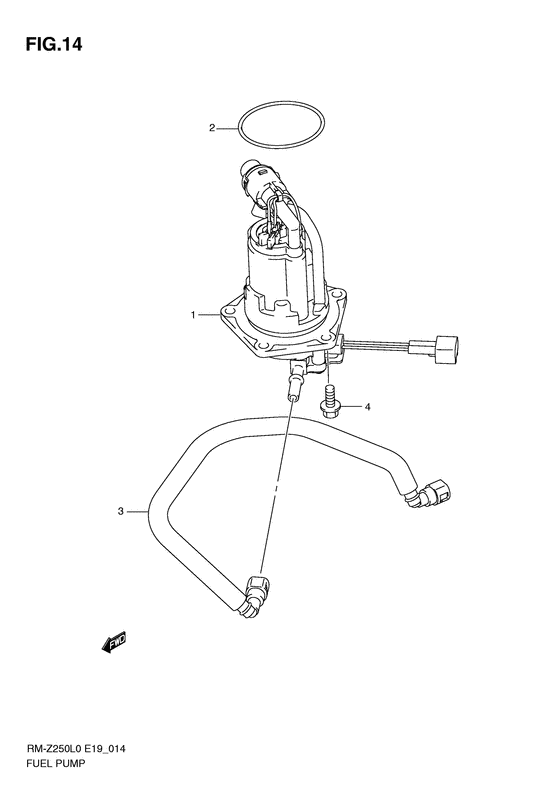

Fuel Pump Diagram Suzuki RM-Z250
- Year
- 2010
- Model code
- RM-Z250L0(E19) L0
- Engine Capacity
- 250
- Model
- RM-Z250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-28H00-000
Pump assy, fuel
|
15100-28H00-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-28H11-000 PUMP ASSY,FUEL |
15100-28H11-000 |
from US $471.68 |
||
|
2
|
2
15111-28H00-000 O-RING |
15111-28H00-000 |
from US $13.87 |
||
|
3
|
3
15810-49H00-000
Hose,fuel
|
15810-49H00-000 |
— | ||
| replacement | |||||
|
3
|
3
15810-49H10-000 HOSE,FUEL |
15810-49H10-000 |
from US $51.52 |
||
|
4
|
4
01547-06207-000 BoltBolt, lower |
01547-06207-000 |
from US $0.80 |
||
