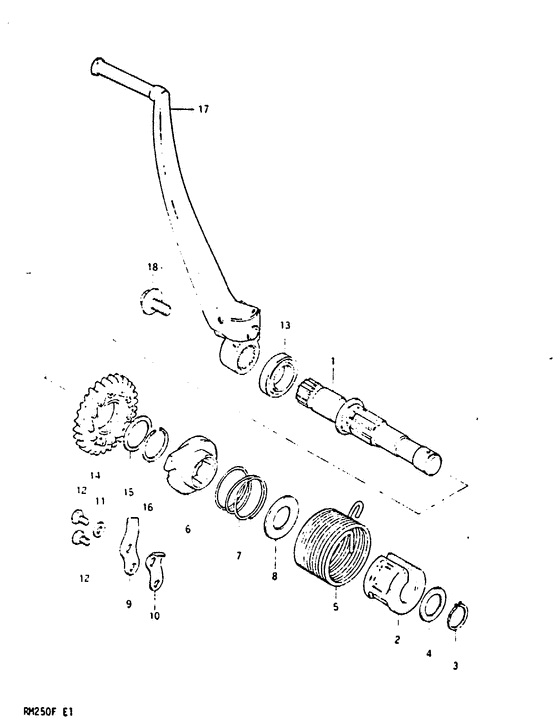

Kick starter Diagram Suzuki RM250
- Year
- 1985
- Model code
- RM250F(E/F) F
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26211-14301-000
Shaft kick star
Shaft, kick starter; |
26211-14301-000 |
— | ||
|
2
|
2
26221-41100-000 GUIDE,KICK STARTER SFT SPRINGGuide, spring Guide, spring; |
26221-41100-000 |
from US $4.38 |
||
|
3
|
3
09380-17001-000 CIRCLIPCirclip |
09380-17001-000 |
from US $1.52 |
||
|
4
|
4
08211-17241-000 WASHERWasher, crankshaft thrust Washer; |
08211-17241-000 |
from US $1.52 |
||
|
5
|
5
09448-45012-000
Spring
|
09448-45012-000 |
— | ||
|
6
|
6
26231-30002-000
Starter, kick
|
26231-30002-000 |
— | ||
| replacement | |||||
|
6
|
6
26231-22A10-000 STARTER,KICK |
26231-22A10-000 |
from US $56 |
||
|
7
|
7
09440-32002-000 SPRINGSpring Spring; |
09440-32002-000 |
from US $1.68 |
||
|
8
|
8
08211-17341-000 WASHER |
08211-17341-000 |
from US $1.67 |
||
|
9
|
9
26232-40200-000 GUIDE,KICK STARTERGuide, kick starter Guide, kick starter; |
26232-40200-000 |
from US $3.46 |
||
|
10
|
10
26233-40200-000
Stopper
Stopper, kick starter; |
26233-40200-000 |
— | ||
| replacement | |||||
|
10
|
10
26233-40201-000 STOPPER,KICK STARTERStopper, kick starter Stopper, kick starter; |
26233-40201-000 |
from US $2.69 |
||
|
11
|
11
09169-06003-000 WASHERWasher Washer; |
09169-06003-000 |
from US $2.45 |
||
|
12
|
12
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
13
|
13
09283-20031-000 SEAL,OIL(20X27X5)Oil seal Oil seal; |
09283-20031-000 |
from US $3.19 |
||
|
14
|
14
26240-41103-000
Gear, kick drive (nt:27)
Model e |
26240-41103-000 |
— | ||
| replacement | |||||
|
14
|
14
26240-13A00-000
Gear,drive (nt:27)
Model e |
26240-13A00-000 |
— | ||
|
14
|
14
26240-13A00-000
Gear,drive (nt:27)
Gear, kick drive (nt:27); Model f |
26240-13A00-000 |
— | ||
|
15
|
15
08211-22281-000 Shim, rev (t:1.0) |
08211-22281-000 |
US $2.84 |
||
| replacement | |||||
|
15
|
15
09181-22139-000 SHIM(22X28X1)Washer (22x28x1.0) |
09181-22139-000 |
from US $1.92 |
||
|
16
|
16
09380-22006-000 CIRCLIPCirclip Circlip; |
09380-22006-000 |
from US $1.82 |
||
|
17
|
17
26300-14601-000
Lever, kick starter
|
26300-14601-000 |
— | ||
| replacement | |||||
|
17
|
17
26300-28E20-000 LEVER ASSY,KICK STARTERLever, kick starter |
26300-28E20-000 |
US $859.20 |
||
|
18
|
18
09103-08069-000 BOLT(8X14) |
09103-08069-000 |
from US $6.90 |
||
