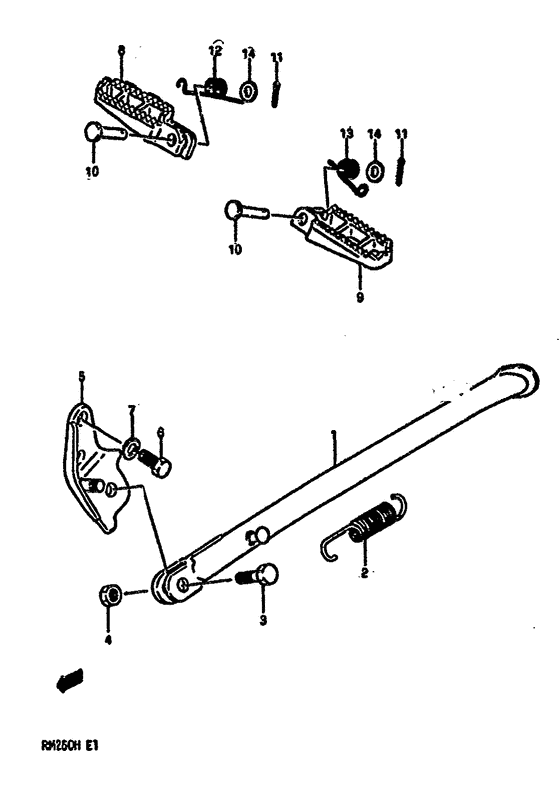

Stand-footrest Diagram Suzuki RM250
- Year
- 1986
- Model code
- RM250G(G/H) G
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-01B00-19F
Stand,prop (blue)
|
42310-01B00-19F |
— | ||
| replacement | |||||
|
1
|
1
42310-14400-019
STAND,PROP(BLACK)
|
42310-14400-019 |
— | ||
|
2
|
2
09443-17007-000 SPRING |
09443-17007-000 |
from US $2.74 |
||
|
3
|
3
09100-10067-000 BOLT(10X30)Bolt (10*30) Bolt (10x30); |
09100-10067-000 |
from US $1.52 |
||
|
4
|
4
08310-22107-000
Nut 10mm rh
|
08310-22107-000 |
— | ||
| replacement | |||||
|
4
|
4
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
5
|
5
42330-14400-19F
Bracket prop stand (blue)
Model g |
42330-14400-19F |
— | ||
| replacement | |||||
|
5
|
5
42330-14400-019
BRACKET,SIDE STAND
Model g |
42330-14400-019 |
— | ||
|
5
|
5
42330-14100-19F
Bracket, prop s
Bracket (blue); Model h |
42330-14100-19F |
— | ||
|
6
|
6
09100-10118-000
BOLT(10X19)
|
09100-10118-000 |
— | ||
|
7
|
7
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
7
|
7
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
8
|
8
43551-14600-19F
Footrest,front rh (blue)
|
43551-14600-19F |
— | ||
| replacement | |||||
|
8
|
8
43551-37202-019
FOOTREST,FR,R
|
43551-37202-019 |
— | ||
|
9
|
9
43561-40401-19F
Footrest,front lh (blue)
|
43561-40401-19F |
— | ||
| replacement | |||||
|
9
|
9
43561-40401-019
FOOTREST,FR,L
|
43561-40401-019 |
— | ||
|
10
|
10
09200-08035-000
Pin
Model g |
09200-08035-000 |
— | ||
| replacement | |||||
|
10
|
10
09200-08064-000 PINModel g |
09200-08064-000 |
from US $2.38 |
||
|
10
|
10
09200-08064-000 PINModel h |
09200-08064-000 |
from US $2.38 |
||
|
11
|
11
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
11
|
11
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
12
|
12
09448-14014-000
Spring, rh
Spring,rh; |
09448-14014-000 |
— | ||
| replacement | |||||
|
12
|
12
09448-14014-XC0
SPRING
Spring,rh; |
09448-14014-XC0 |
— | ||
|
13
|
13
09448-14018-000
Spring, lh
Spring,lh; |
09448-14018-000 |
— | ||
| replacement | |||||
|
13
|
13
09448-14018-XC0
SPRING
Spring,lh; |
09448-14018-XC0 |
— | ||
|
14
|
14
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
