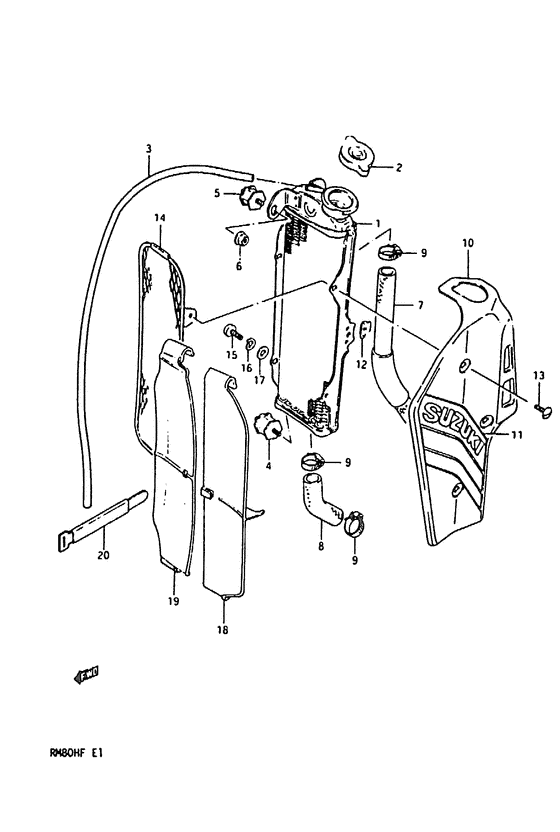

Radiator Diagram Suzuki RM80
- Year
- 1985
- Model code
- RM80HF F
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-20931-000
Radiator
|
17710-20931-000 |
— | ||
| replacement | |||||
|
1
|
1
17710-20932-000
New Genuine Part
|
17710-20932-000 |
— | ||
|
2
|
2
17730-20930-000
Cap, radiator (1.1)
|
17730-20930-000 |
— | ||
| replacement | |||||
|
2
|
2
17730-08J00-000 CAP,RADIATOR |
17730-08J00-000 |
from US $14.90 |
||
|
3
|
3
09343-05280-000
Hose (l:680-+650)
|
09343-05280-000 |
— | ||
| replacement | |||||
|
3
|
3
09352-50901-00B HOSE(5X9X2000)Hose, reservoir tank |
09352-50901-00B |
from US $12 |
||
|
4
|
4
17788-14300-000
Cushion radiato
|
17788-14300-000 |
— | ||
|
5
|
5
17788-20930-000
Cushion radiato
|
17788-20930-000 |
— | ||
|
6
|
6
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
17851-20930-000
Hose, inlet
|
17851-20930-000 |
— | ||
|
8
|
8
17852-20930-000
Hose, outlet
|
17852-20930-000 |
— | ||
|
9
|
9
09402-25501-000
Clamp
|
09402-25501-000 |
— | ||
| replacement | |||||
|
9
|
9
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
||
|
10
|
10
17761-20930-000
Cover, radiator
|
17761-20930-000 |
— | ||
| replacement | |||||
|
10
|
10
17761-20931-25Y COVER,RADIATOR |
17761-20931-25Y |
US $31.55 |
||
|
11
|
11
68670-20900-95C
Tape set radiat
|
68670-20900-95C |
— | ||
|
12
|
12
17785-20930-000 PLATE,RADIATOR COVER FITING |
17785-20930-000 |
from US $2.39 |
||
|
13
|
13
09125-06045-000 SCREW(6X14) |
09125-06045-000 |
from US $12.70 |
||
|
14
|
14
17810-20930-000
Bumper, radiator
|
17810-20930-000 |
— | ||
|
15
|
15
02112-06104-000
Screw
|
02112-06104-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
16
|
16
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
18
|
18
17831-20900-000
Louver, radiator outer
|
17831-20900-000 |
— | ||
| replacement | |||||
|
18
|
18
17830-20900-25Y
Louver,radiator
|
17830-20900-25Y |
— | ||
|
19
|
19
17832-20900-000
Louver, radiator inner
|
17832-20900-000 |
— | ||
| replacement | |||||
|
19
|
19
17832-20900-25Y
Louver,radiator
|
17832-20900-25Y |
— | ||
|
20
|
20
09407-18301-000
CLAMP
Clamp; |
09407-18301-000 |
— | ||
| replacement | |||||
|
20
|
20
09407-18302-000 ClampClamp; |
09407-18302-000 |
from US $2.08 |
||
