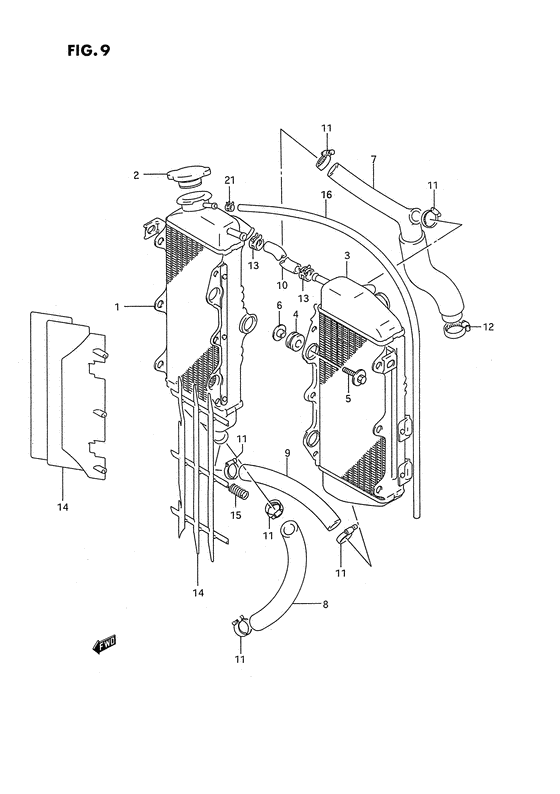

Radiator Diagram Suzuki RMX250
- Year
- 1994
- Model code
- RMX250RR(E1) R
- Engine Capacity
- 250
- Model
- RMX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-29E01-000
Radiator, water rh
|
17710-29E01-000 |
— | ||
|
2
|
2
17730-20930-000
Cap, radiator (1.1)
Model p |
17730-20930-000 |
— | ||
| replacement | |||||
|
2
|
2
17730-08J00-000 CAP,RADIATORModel p |
17730-08J00-000 |
from US $14.90 |
||
|
2
|
2
17730-12C01-000
Cap, radiator
Model r |
17730-12C01-000 |
— | ||
| replacement | |||||
|
2
|
2
17730-08J00-000 CAP,RADIATORModel r |
17730-08J00-000 |
from US $14.90 |
||
|
3
|
3
17720-29E11-000
Radiator, water lh
|
17720-29E11-000 |
— | ||
|
4
|
4
17787-19A00-000 CUSHION,RADIATOR LWRCushion, lower Cushion, radiator; |
17787-19A00-000 |
from US $2.24 |
||
|
5
|
5
09116-06147-000 BOLT(6X25)Bolt, side |
09116-06147-000 |
from US $1.52 |
||
|
6
|
6
09180-06243-000 SPACER(6.5X10.5X14.1) |
09180-06243-000 |
from US $8.74 |
||
|
7
|
7
17851-29E10-000
Hose, radiator inlet
|
17851-29E10-000 |
— | ||
|
8
|
8
17852-29E10-000
HOSE,RADIATOR OUTLET
|
17852-29E10-000 |
— | ||
|
9
|
9
17853-29E00-000 HOSE,RADIATOR JOINTHose, joint no.2 Hose, radiator joint; |
17853-29E00-000 |
from US $10.56 |
||
|
10
|
10
17855-28E00-000
Hose, bypass
|
17855-28E00-000 |
— | ||
| replacement | |||||
|
10
|
10
17854-13810-000
HOSE,RADIATOR BYPASS
|
17854-13810-000 |
— | ||
|
11
|
11
09402-25502-000
Clamp
|
09402-25502-000 |
— | ||
| replacement | |||||
|
11
|
11
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
||
|
12
|
12
09402-30502-000
Clamp
|
09402-30502-000 |
— | ||
| replacement | |||||
|
12
|
12
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
13
|
13
09401-13404-000
CLIP
Clip; Model p |
09401-13404-000 |
— | ||
|
13
|
13
09401-13414-000 CLIPClip, pcv hose Clip; Model r |
09401-13414-000 |
from US $1.60 |
||
|
14
|
14
17831-26C00-000 LOUVER,RADIATOR |
17831-26C00-000 |
from US $26.18 |
||
|
15
|
15
09440-11024-000
Spring
|
09440-11024-000 |
— | ||
| replacement | |||||
|
15
|
15
09440-11024-XC0 SPRING |
09440-11024-XC0 |
from US $2.59 |
||
|
16
|
16
09351-50803-00B HOSE(5X8X2000)Hose, overflow Hose (5x8x2000); L:2000->50 |
09351-50803-00B |
from US $8.66 |
||
