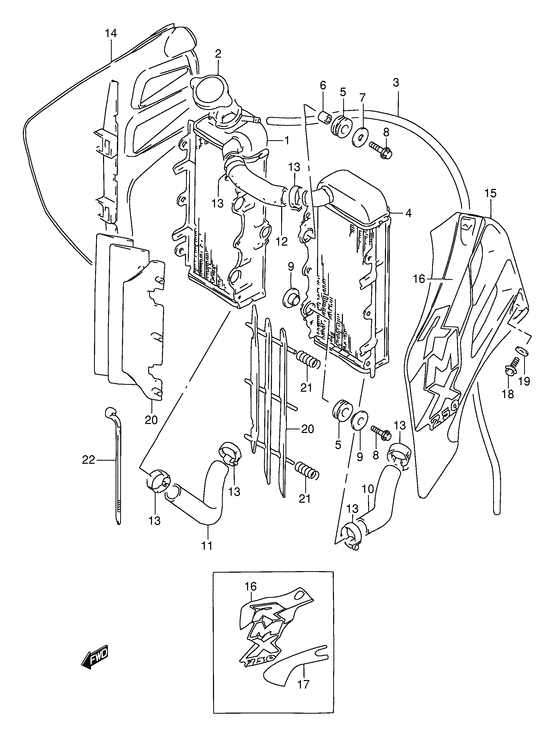

Radiator Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-05D00-000
RADIATOR,WATER,R
|
17710-05D00-000 |
— | ||
|
2
|
2
17730-12C01-000
Cap, radiator
|
17730-12C01-000 |
— | ||
| replacement | |||||
|
2
|
2
17730-08J00-000 CAP,RADIATOR |
17730-08J00-000 |
from US $14.90 |
||
|
3
|
3
09351-50803-00B HOSE(5X8X2000)Hose, overflow Hose, over flow; L:2000->50 |
09351-50803-00B |
from US $8.66 |
||
|
4
|
4
17720-05D00-000
Radiator comp,w
|
17720-05D00-000 |
— | ||
|
5
|
5
17787-19A00-000 CUSHION,RADIATOR LWRCushion, lower Cushion, support; |
17787-19A00-000 |
from US $2.24 |
||
|
6
|
6
09180-06221-000
SPACER(6.5X10.5X12)
Spacer (6.5x10.5x12); |
09180-06221-000 |
— | ||
|
7
|
7
09160-06114-000 WASHER(6.5X24X1.2)Washer (6.5x24x1.2) Washer (6.5x24x1.2); |
09160-06114-000 |
from US $0.98 |
||
|
8
|
8
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
8
|
8
01547-0625B-000 BOLT |
01547-0625B-000 |
from US $0.91 |
||
|
9
|
9
17781-26C00-000 WASHER,RDTR SPRTWasher, radiator support |
17781-26C00-000 |
from US $1.92 |
||
|
10
|
10
17851-28C00-000 HOSE,RADIATOR INLETHose, inlet |
17851-28C00-000 |
from US $8.83 |
||
|
11
|
11
17852-28C10-000
HOSE,RADIATOR OUTLET
|
17852-28C10-000 |
— | ||
|
12
|
12
17851-01A00-000 HOSE,RADIATOR INLETHose, head outlet joint Hose, joint (l:68); |
17851-01A00-000 |
from US $18.24 |
||
|
13
|
13
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
||
|
14
|
14
17761-28C00-019
COVER,RADIATOR,R
Cover, rediator rh (black); |
17761-28C00-019 |
— | ||
|
15
|
15
17762-28C00-019
COVER,RADIATOR,L
Cover, radiator lh (black); |
17762-28C00-019 |
— | ||
|
16
|
16
68661-05D50-J5D
Emblem,radiator
Emblem, radiator cover, rh; |
68661-05D50-J5D |
— | ||
|
16
|
16
68671-05D50-J5D
Emblem,radiator
Emblem, radiator cover, lh; |
68671-05D50-J5D |
— | ||
|
17
|
17
68665-05D30-25Y
Tape,radiator c
Tape, radiator cover, rh; |
68665-05D30-25Y |
— | ||
|
17
|
17
68675-05D30-25Y
Tape,radiator c
Tape, radiator cover, lh; |
68675-05D30-25Y |
— | ||
|
18
|
18
01547-06123-000
Bolt
|
01547-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01547-0612B-000 BOLT |
01547-0612B-000 |
from US $0.77 |
||
|
18
|
18
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
19
|
19
09169-06054-000
Washer
Washer (6.3x16x1); |
09169-06054-000 |
— | ||
| replacement | |||||
|
19
|
19
09169-06053-000 WASHERWasher (6.3x16x1); |
09169-06053-000 |
from US $0.91 |
||
|
20
|
20
17831-26C00-000 LOUVER,RADIATOR |
17831-26C00-000 |
from US $26.18 |
||
|
21
|
21
09440-11024-000
Spring
Spring, louver stopper; |
09440-11024-000 |
— | ||
| replacement | |||||
|
21
|
21
09440-11024-XC0 SPRINGSpring, louver stopper; |
09440-11024-XC0 |
from US $2.59 |
||
|
22
|
22
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
22
|
22
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
