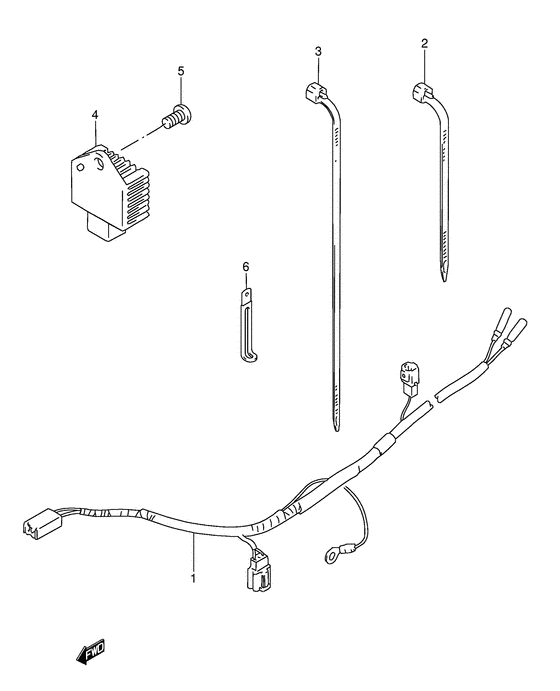

Wiring harness Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-05D11-000
Harness,wiring
|
36610-05D11-000 |
— | ||
|
2
|
2
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
3
|
3
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
4
|
4
32500-14D00-000 REGULATOR ASSYRegulator assy, voltage; |
32500-14D00-000 |
from US $114.82 |
||
|
5
|
5
02112-16123-000
Screw
|
02112-16123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-1612B-000 SCREW |
02112-1612B-000 |
from US $4.13 |
||
|
6
|
6
09404-06432-000
CLAMP(L:65)
Clamp (l:80); |
09404-06432-000 |
— | ||
| replacement | |||||
|
6
|
6
09404-06039-000 Clamp(L:65)Clamp (l:80); |
09404-06039-000 |
from US $1.82 |
||
