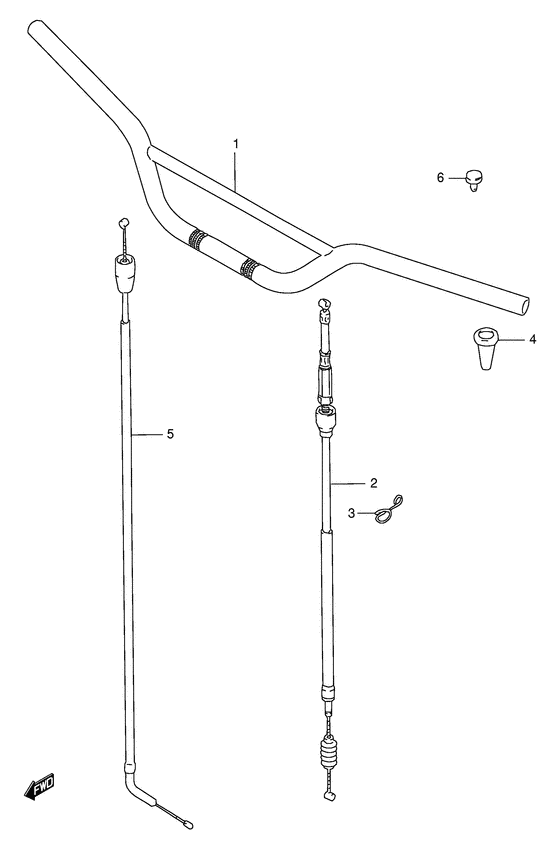

Handlebar Diagram Suzuki RMX250
- Year
- 1999
- Model code
- RMX250X(E1) X
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-29E11-13L
Handlebar
Handlebar (silver); |
56110-29E11-13L |
— | ||
|
2
|
2
58210-28C03-000
Cable assy, clutch
Model w |
58210-28C03-000 |
— | ||
| replacement | |||||
|
2
|
2
58210-28CV0-000
CABLE ASSY,CLUTCH
Model w |
58210-28CV0-000 |
— | ||
|
2
|
2
58210-28CV0-000
CABLE ASSY,CLUTCH
Model x |
58210-28CV0-000 |
— | ||
|
3
|
3
58294-05D00-000
Clamp,clutch ca
|
58294-05D00-000 |
— | ||
|
4
|
4
58273-31000-000
BOOT,CLUTCH CABLE
Boot, clutch cable; |
58273-31000-000 |
— | ||
| replacement | |||||
|
4
|
4
58273-31001-000 Boot,clutch CableBoot, clutch cable; |
58273-31001-000 |
from US $1.98 |
||
|
5
|
5
58300-27C10-000
Cable assy,throttle
|
58300-27C10-000 |
— | ||
| replacement | |||||
|
5
|
5
58300-27C11-000
Cable assy,throttle
|
58300-27C11-000 |
— | ||
|
6
|
6
09250-09001-000
CAP(OD:14)
Plug; |
09250-09001-000 |
— | ||
| replacement | |||||
|
6
|
6
09250-09008-000 Cap(Od:14)Plug; |
09250-09008-000 |
from US $2.45 |
||
