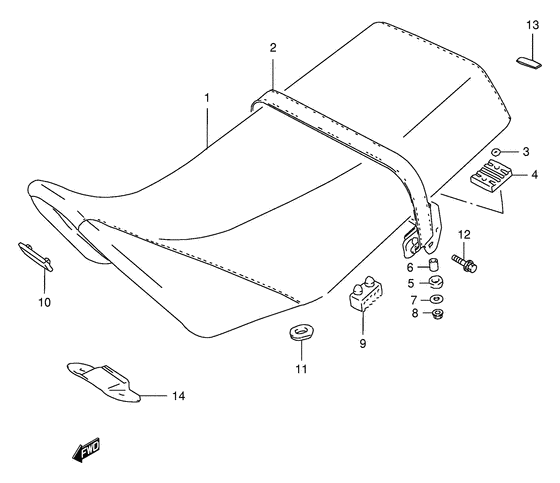

Seat (P9) Diagram Suzuki TS125
- Year
- 1998
- Model code
- TS125ERCW(E1) W
- Engine Capacity
- 125
- Model
- TS125ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-48760-000
Seat assy
Purchase locally |
45100-48760-000 |
— | ||
|
2
|
2
45180-42A00-000
Band, seat grip
|
45180-42A00-000 |
— | ||
|
3
|
3
08322-01063-000
Washer
Washer, upper; |
08322-01063-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-0106B-000 WASHERWasher, upper; |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
45150-23450-000 CUSHION,FR PLATECushion, front plate Cushion, upper; |
45150-23450-000 |
from US $2.98 |
||
|
5
|
5
45147-23450-000 CUSHION,SEAT FRCushion, lower; |
45147-23450-000 |
US $1.52 |
||
|
6
|
6
45219-23450-000
Spacer seat sup
|
45219-23450-000 |
— | ||
|
7
|
7
08212-06201-000 WASHERWasher, shifting rod guide Washer, lower; |
08212-06201-000 |
from US $0.76 |
||
|
8
|
8
08361-35068-000
Nut
|
08361-35068-000 |
— | ||
| replacement | |||||
|
8
|
8
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.77 |
||
|
9
|
9
45149-31300-000 CUSHION,SEAT(40X20X15) |
45149-31300-000 |
from US $4.56 |
||
|
10
|
10
09321-08009-000 CUSHIONCushion Cushion, front; |
09321-08009-000 |
from US $4.88 |
||
|
11
|
11
09329-08003-000 CUSHIONGrommet Grommet; |
09329-08003-000 |
from US $5.07 |
||
|
12
|
12
01580-08163-000
Bolt, bracket
Bolt, seat; |
01580-08163-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0816A-000 BoltBolt, seat; |
01580-0816A-000 |
from US $0.96 |
||
|
13
|
13
09329-06001-000
CUSHION
Cushion, seat rear; |
09329-06001-000 |
— | ||
|
14
|
14
45119-48760-000 PLATE,SEAT FR HOOKPlate, seat front hood Plate, seat hook; |
45119-48760-000 |
US $7.51 |
||
