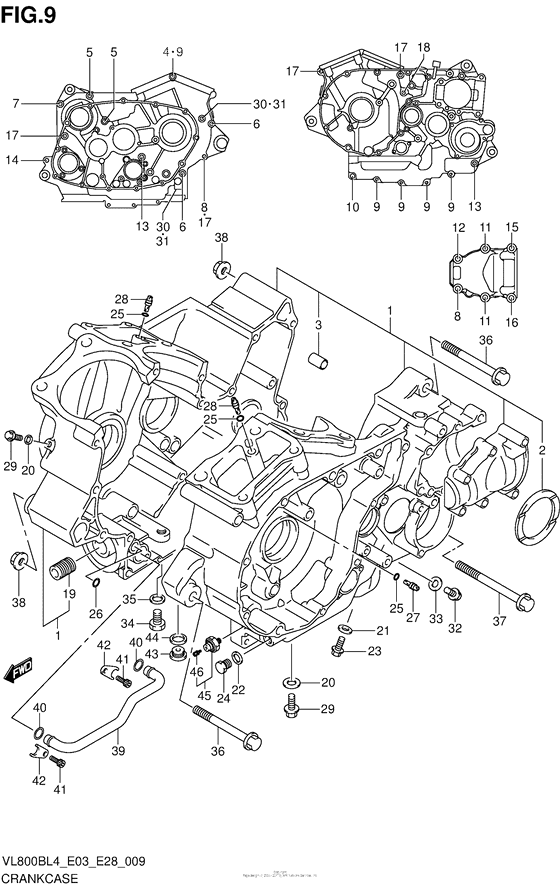

Crankcase Diagram Suzuki VL800 Boulevard C50 B.O.S.S.
- Year
- 2014
- Model code
- VL800BL4
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VL800B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11302-39840-000 CRANKCASE SET |
11302-39840-000 |
from US $1,902.32 |
||
|
2
|
2
09160-48001-000 WASHER(48.1X64X1.94) |
09160-48001-000 |
from US $19 |
||
|
2
|
2
09160-48002-000 WASHER(48.1X64X1.96) |
09160-48002-000 |
US $23 |
||
|
2
|
2
09160-48003-000 WASHER(48.1X64X1.99) |
09160-48003-000 |
from US $23.31 |
||
|
2
|
2
09160-48004-000 WASHER(48.1X64X2.01) |
09160-48004-000 |
US $137.30 |
||
|
2
|
2
09160-48005-000 WASHER(48.1X64X2.04) |
09160-48005-000 |
US $20 |
||
|
2
|
2
09160-48006-000 WASHER(48.1X64X2.06) |
09160-48006-000 |
from US $20 |
||
|
2
|
2
09160-48007-000 WASHER(48.1X64X2.09) |
09160-48007-000 |
from US $23.31 |
||
|
2
|
2
09160-48008-000 WASHER(48.1X64X2.11) |
09160-48008-000 |
from US $23.31 |
||
|
2
|
2
09160-48009-000 WASHER(48.1X64X2.14) |
09160-48009-000 |
from US $23.31 |
||
|
2
|
2
09160-48010-000 WASHER(48.1X64X2.16) |
09160-48010-000 |
from US $34.83 |
||
|
3
|
3
09206-11007-000 PIN(8.4X11X20) |
09206-11007-000 |
from US $3.20 |
||
|
4
|
4
09103-08405-000 BOLT(8X160) |
09103-08405-000 |
US $48.90 |
||
|
5
|
5
09103-08406-000 BOLT(8X120) |
09103-08406-000 |
US $19.10 |
||
|
6
|
6
09103-08179-000 BOLT(8X105)Bolt, lh (8x105) |
09103-08179-000 |
from US $6.33 |
||
|
7
|
7
09103-08164-000 BOLT(8X95)Bolt (8x95) |
09103-08164-000 |
from US $6.49 |
||
|
8
|
8
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
9
|
9
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.96 |
||
|
10
|
10
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
12
|
12
01550-0850A-000 Bolt |
01550-0850A-000 |
from US $5 |
||
|
13
|
13
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
14
|
14
01550-0860A-000 Bolt |
01550-0860A-000 |
from US $5.68 |
||
|
15
|
15
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
16
|
16
01550-0865A-000 BOLTBolt, oil pump (l) |
01550-0865A-000 |
from US $1.44 |
||
|
17
|
17
09103-08105-000 BOLT(8X95)Bolt (8x95) |
09103-08105-000 |
from US $5.27 |
||
|
18
|
18
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
19
|
19
16591-06B01-000 UNION,OIL STAND |
16591-06B01-000 |
from US $5.60 |
||
|
20
|
20
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.52 |
||
|
21
|
21
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
22
|
22
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) |
09168-14004-000 |
from US $1.22 |
||
|
23
|
23
09247-10008-000 PLUG(10X12)Plug, drain |
09247-10008-000 |
from US $1.52 |
||
|
24
|
24
09247-14026-000 PLUG(14X12)Plug, drain |
09247-14026-000 |
from US $2.72 |
||
|
25
|
25
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet |
09280-04004-000 |
from US $1.82 |
||
|
26
|
26
09280-12009-000 O RING(D:1.9,ID:12.6) |
09280-12009-000 |
from US $1.73 |
||
|
27
|
27
09493-20014-000 JET,OIL GALLERYJet, t/m oil gallery |
09493-20014-000 |
from US $11.20 |
||
|
28
|
28
09493-28010-000 JET,AIR (14)Jet, oil gallery |
09493-28010-000 |
from US $6.72 |
||
|
29
|
29
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
30
|
30
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
31
|
31
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
32
|
32
09103-08407-000 BOLT(8X12)Bolt (l:12) |
09103-08407-000 |
US $14.40 |
||
|
33
|
33
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
34
|
34
09247-12011-000 PLUG(12X20)Plug, oil drain |
09247-12011-000 |
from US $2.74 |
||
|
35
|
35
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
36
|
36
09103-10706-000 BOLT(10X135) |
09103-10706-000 |
from US $6.69 |
||
|
37
|
37
09103-10705-000 BOLT(10X160) |
09103-10705-000 |
from US $7.76 |
||
|
38
|
38
09159-10113-000 NUT |
09159-10113-000 |
from US $2.72 |
||
|
39
|
39
11451-38A00-000 PIPE,OIL GALLERY |
11451-38A00-000 |
from US $10.82 |
||
|
40
|
40
09280-15008-000 O RING(D:3.1,ID:14.8) |
09280-15008-000 |
from US $1.22 |
||
|
41
|
41
09106-06075-000 BOLT(6X12) |
09106-06075-000 |
from US $3.04 |
||
|
42
|
42
11461-38A00-000 CLAMP,OIL PIPE |
11461-38A00-000 |
US $1.18 |
||
|
43
|
43
09248-16013-000 PLUG (16X12)Plug, t/m breather |
09248-16013-000 |
from US $2.74 |
||
|
44
|
44
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $0.90 |
||
|
45
|
45
37820-33D10-000 SWITCH ASSY,OIL PRESSURE |
37820-33D10-000 |
US $28.02 |
||
| replacement | |||||
|
45
|
45
37820-33D11-000 SWITCH ASSYOIL PRESSURE |
37820-33D11-000 |
from US $24.32 |
||
|
46
|
46
37822-33D00-000 BOLT,OIL PRESSURE SWITCH |
37822-33D00-000 |
from US $3.19 |
||
