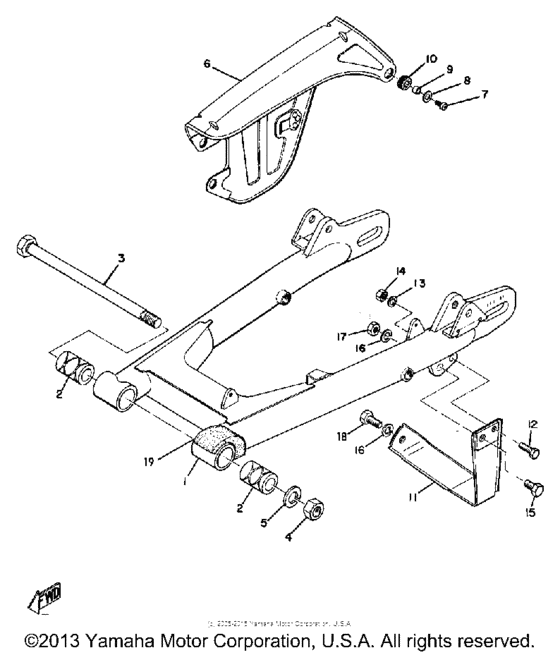

Rear arm & chain case Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-22110-00-33
Rear Arm
|
248-22110-00-33 |
— | ||
|
2
|
2
174-22123-00-00
Bush 1
|
174-22123-00-00 |
— | ||
|
3
|
3
248-22141-00-00 Shaft, Pivot |
248-22141-00-00 |
US $61.48 |
||
|
4
|
4
953-03146-00-00 Nut |
953-03146-00-00 |
US $3.09 |
||
|
5
|
5
92901-14100-00 Washer (6Tc)6TC |
92901-14100-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
92907-14100-00 Washer6TC |
92907-14100-00 |
from US $4.53 |
||
|
6
|
6
248-22311-00-35
Case, Chain
|
248-22311-00-35 |
— | ||
|
7
|
7
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
8
|
8
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
9
|
9
90560-05001-00 Spacer |
90560-05001-00 |
from US $3.54 |
||
|
10
|
10
904-80120-96-00
Grommet (141-82596-00)
141-82596-00 |
904-80120-96-00 |
— | ||
|
11
|
11
248-22318-00-33
Guard, Chain
|
248-22318-00-33 |
— | ||
|
12
|
12
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
12
|
12
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
15
|
15
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
973-21081-00-00 Bolt (83L)83L N/A ISO |
973-21081-00-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
970-27081-00-00 Bolt, Hexagon83L N/A ISO |
970-27081-00-00 |
from US $2.13 |
||
|
18
|
18
973-13080-20-00
Bolt (661)
|
973-13080-20-00 |
— | ||
| replacements | |||||
|
18
|
18
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
18
|
18
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
19
|
19
248-22151-00-00
Seal, Guard
|
248-22151-00-00 |
— | ||
