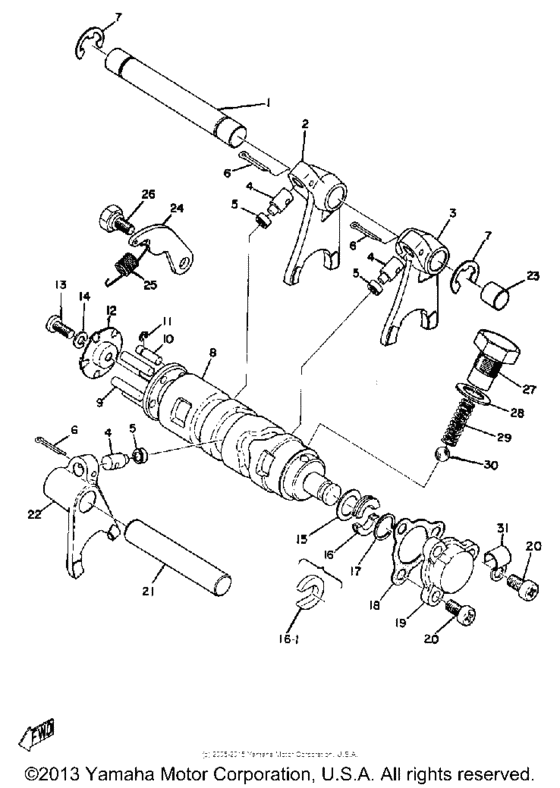

Shift shaft (A) Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90250-08017-00 Pin 2781855200 |
90250-08017-00 |
from US $1.70 |
||
|
1
|
1
214-18531-00-00 Bar, Shift Fork Guide 1 |
214-18531-00-00 |
US $18.42 |
||
|
2
|
2
463-18513-00-00 Fork, Shift 3USE W/REF 4-1 SEE PN402 |
463-18513-00-00 |
from US $42.30 |
||
|
3
|
3
463-18511-00-00 Fork, Shift 1USE W/REF 4-1 SEE PN402 |
463-18511-00-00 |
from US $42.44 |
||
|
4
|
4
902-49050-35-00
Pin, Spec''l Shape
|
902-49050-35-00 |
— | ||
|
5
|
5
136-18551-00-00
Pin, Spec''l Shape
|
136-18551-00-00 |
— | ||
| replacement | |||||
|
5
|
5
902-49050-35-00
Pin, Spec''l Shape
|
902-49050-35-00 |
— | ||
|
6
|
6
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
6
|
6
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
7
|
7
93430-10017-00 Circlip4355 AT1E |
93430-10017-00 |
from US $1.35 |
||
| replacement | |||||
|
7
|
7
99006-10600-00 Circlip4355 AT1E |
99006-10600-00 |
from US $1.34 |
||
|
8
|
8
315-18540-00-00
Shift Cam Assembly
|
315-18540-00-00 |
— | ||
|
9
|
9
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
10
|
10
90249-04039-00
Pin, Spec''l Shape (174-18544
174-18544 |
90249-04039-00 |
— | ||
|
11
|
11
93430-03014-00
Circlip, E-Type
|
93430-03014-00 |
— | ||
|
12
|
12
164-18561-00-00 Plate, Side 1 |
164-18561-00-00 |
from US $3.26 |
||
|
13
|
13
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
|
16
|
16
307-18571-00-00
Holder, Shift Cam
|
307-18571-00-00 |
— | ||
|
16
|
16
164-18571-01-00 Holder, Shift Cam |
164-18571-01-00 |
from US $7.23 |
||
|
17
|
17
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
17
|
17
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
18
|
18
4Y2-18579-00-00 Gasket, Plug Blind |
4Y2-18579-00-00 |
from US $3.97 |
||
| replacement | |||||
|
18
|
18
4EG-18579-00-00 MUFFLER COMP. 2 |
4EG-18579-00-00 |
from US $3.97 |
||
|
19
|
19
164-18589-00-00 Plug, Blind |
164-18589-00-00 |
from US $5.38 |
||
|
20
|
20
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
21
|
21
248-18531-00-00 Bar, Shif Frk Gde 1 |
248-18531-00-00 |
from US $10.17 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
463-18512-00-00 Fork, Shift 2USE REF 4-1 SEE PN402 |
463-18512-00-00 |
from US $42.32 |
||
|
23
|
23
214-15385-00-00 Plug, Blind |
214-15385-00-00 |
from US $9.07 |
||
|
24
|
24
132-18140-01-00 Stopper Lever Assembly |
132-18140-01-00 |
from US $14.17 |
||
|
25
|
25
90506-09112-00 Spring, Tension |
90506-09112-00 |
from US $2.55 |
||
|
26
|
26
90109-06001-00 Bolt 132181770000 |
90109-06001-00 |
from US $2.13 |
||
| replacement | |||||
|
26
|
26
901-09062-39-00 Bolt |
901-09062-39-00 |
from US $1.47 |
||
|
27
|
27
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
28
|
28
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
28
|
28
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
29
|
29
90501-12083-00 Spring, Compression |
90501-12083-00 |
US $1.62 |
||
| replacement | |||||
|
29
|
29
90501-12750-00 Spring, Compression |
90501-12750-00 |
US $1.58 |
||
|
30
|
30
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
31
|
31
90462-05012-00 Clamp |
90462-05012-00 |
from US $2.41 |
||
