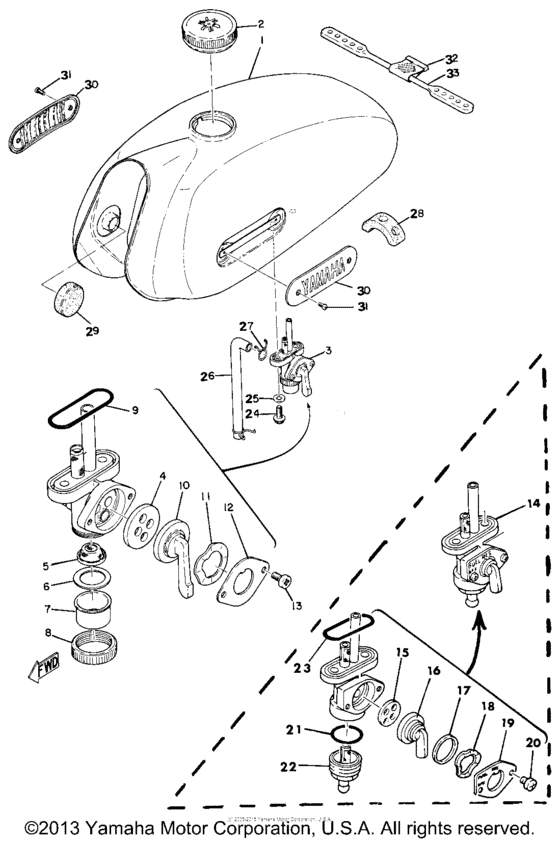

Fuel tank Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-24110-00-07
Fuel Tank
|
248-24110-00-07 |
— | ||
|
1
|
1
248-24110-00-06
Fuel Tank
|
248-24110-00-06 |
— | ||
|
2
|
2
122-24610-01-00 Cap AssemblyFOR NEW PART |
122-24610-01-00 |
from US $22.53 |
||
|
3
|
3
498-24500-01-00 Fuel Cock Assembly 1 (214-24500214-24500 N/A. SEE REF. #14 FOR NEW PART |
498-24500-01-00 |
from US $149.15 |
||
|
4
|
4
214-24523-00-00 ValveFOR NEW PART |
214-24523-00-00 |
from US $32.02 |
||
|
5
|
5
214-24515-00-00
Net, Filter 2
|
214-24515-00-00 |
— | ||
|
6
|
6
214-24522-00-00 Gasket |
214-24522-00-00 |
from US $10.91 |
||
|
7
|
7
214-24521-00-00
Cup, Filter
|
214-24521-00-00 |
— | ||
|
8
|
8
214-24531-00-00
Nut
|
214-24531-00-00 |
— | ||
|
9
|
9
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
10
|
10
214-24524-01-00
Lever, Cock
|
214-24524-01-00 |
— | ||
|
11
|
11
90206-18025-00 Washer, Wave |
90206-18025-00 |
from US $4.39 |
||
|
12
|
12
214-24525-00-00
Plate, Lvr Fitting
|
214-24525-00-00 |
— | ||
|
13
|
13
214-24535-00-00 Screw, Lever Fitting |
214-24535-00-00 |
from US $2.98 |
||
|
14
|
14
498-24500-01-00 Fuel Cock Assembly 1 (214-24500214-24500 |
498-24500-01-00 |
from US $149.15 |
||
|
15
|
15
498-24523-00-00 Valve |
498-24523-00-00 |
from US $30.74 |
||
|
16
|
16
498-24524-01-00
Lever, Cock
|
498-24524-01-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
498-24528-00-00
Gasket
|
498-24528-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90206-18025-00 Washer, Wave |
90206-18025-00 |
from US $4.39 |
||
|
19
|
19
498-24525-00-00
Plate, Lvr Fitting
|
498-24525-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
214-24535-00-00 Screw, Lever Fitting |
214-24535-00-00 |
from US $2.98 |
||
|
21
|
21
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
22
|
22
498-24521-00-00
Cup, Filter
|
498-24521-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
24
|
24
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
25
|
25
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
26
|
26
214-24311-00-00
Hose (L100)
|
214-24311-00-00 |
— | ||
| replacement | |||||
|
26
|
26
90445-11293-00 Hose (L100) |
90445-11293-00 |
from US $3.68 |
||
|
27
|
27
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
27
|
27
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
27
|
27
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
28
|
28
248-24183-00-00
Damper, Locating 3
|
248-24183-00-00 |
— | ||
|
29
|
29
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
29
|
29
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
30
|
30
227-24161-00-00
Emblem 1
|
227-24161-00-00 |
— | ||
|
31
|
31
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
32
|
32
214-24173-00-00
Band, Tnk Fitting 1
|
214-24173-00-00 |
— | ||
|
33
|
33
248-24173-00-00
Band, Tnk Fitting 1
|
248-24173-00-00 |
— | ||
