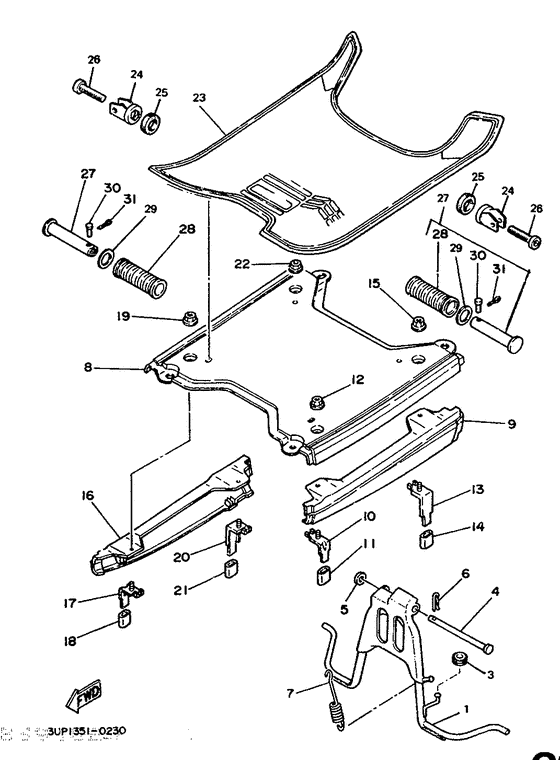

Soporte . apoyapie Diagram Yamaha CH80 Beluga
- Year
- 1990
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 3WU1
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- CH80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UP-F7111-00-11
Stand, Main
|
3UP-F7111-00-11 |
— | ||
|
03
|
03
90387-076V1-00 Collar |
90387-076V1-00 |
from US $4.11 |
||
|
04
|
04
90240-08123-00
Pin, Clevis
|
90240-08123-00 |
— | ||
|
05
|
05
90202-08125-00 Washer, Plate |
90202-08125-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
90202-10120-00 Washer, Plate |
90202-10120-00 |
from US $2.13 |
||
|
06
|
06
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
07
|
07
90506-29280-00 Spring |
90506-29280-00 |
from US $11.76 |
||
|
08
|
08
3EC-F7481-00-00
Board, Footrest
Pr.gb et br |
3EC-F7481-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
Pr.gb et br |
999-99999-99-00 |
— | ||
|
09
|
09
3EC-F7486-00-15
Cover 1
Glit.black |
3EC-F7486-00-15 |
— | ||
|
09
|
09
3EC-F7486-00-17
Cover 1
Burnimng red |
3EC-F7486-00-17 |
— | ||
|
10
|
10
35R-27432-00-00
Bracket 1
|
35R-27432-00-00 |
— | ||
|
11
|
11
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
|
12
|
12
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
13
|
13
35R-27442-00-00
Bracket 2
|
35R-27442-00-00 |
— | ||
|
14
|
14
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
|
15
|
15
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
16
|
16
3EC-F7487-00-15
Cover 2
Glit.black |
3EC-F7487-00-15 |
— | ||
|
16
|
16
3EC-F7487-00-17
Cover 2
Burning red |
3EC-F7487-00-17 |
— | ||
|
17
|
17
35R-27432-00-00
Bracket 1
|
35R-27432-00-00 |
— | ||
|
18
|
18
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
|
19
|
19
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
20
|
20
35R-27442-00-00
Bracket 2
|
35R-27442-00-00 |
— | ||
|
21
|
21
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
|
22
|
22
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
23
|
23
3EC-F7483-40-00
Mat 1
Pr.gb et br |
3EC-F7483-40-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
Pr.gb et br |
999-99999-99-00 |
— | ||
|
24
|
24
3UP-F741L-00-11
Bracket 4
Noir |
3UP-F741L-00-11 |
— | ||
|
25
|
25
3UP-F7437-00-00
Washer, Special
|
3UP-F7437-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
3UP-F7434-00-00
Bolt
|
3UP-F7434-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
5T8-F7431-00-00
Footrest, Rear 1
|
5T8-F7431-00-00 |
— | ||
|
28
|
28
5T8-F7433-00-00
Cover, Rear Footrest
|
5T8-F7433-00-00 |
— | ||
|
29
|
29
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
30
|
30
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
31
|
31
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
31
|
31
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
