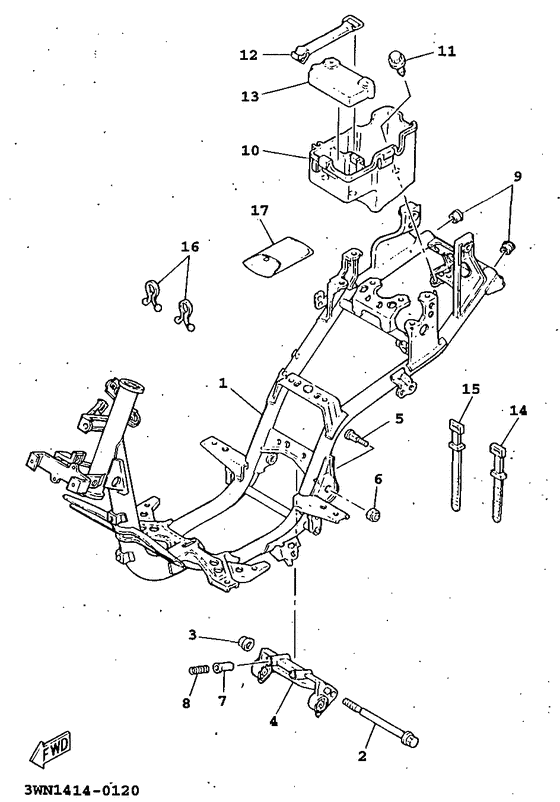

Frame Diagram Yamaha CR50z Target
- Year
- 1996
- Colour
- White Metallic 1 (WM1; 0233)
- Model code
- 3WN2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- CR50Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3WN-F1110-10-33
Frame Comp
Yb |
3WN-F1110-10-33 |
— | ||
|
02
|
02
90105-10161-00 Bolt, Washer Based |
90105-10161-00 |
US $9.78 |
||
|
03
|
03
9570L-10500-00 Nut, Flange |
9570L-10500-00 |
US $1.07 |
||
|
04
|
04
3GF-F1410-10-00
Engine Bracket Comp
|
3GF-F1410-10-00 |
— | ||
|
05
|
05
4Y4-F1481-00-00 Bolt, Engine Mounting 1 |
4Y4-F1481-00-00 |
from US $9.63 |
||
| replacement | |||||
|
05
|
05
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
06
|
06
9561L-10100-00
Bolt, Stud
|
9561L-10100-00 |
— | ||
|
07
|
07
4Y4-F139X-01-00 Damper |
4Y4-F139X-01-00 |
from US $2.41 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00
Damper
|
3WG-F139X-00-00 |
— | ||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
3GF-F1399-00-00
Cap, Tool Box
|
3GF-F1399-00-00 |
— | ||
|
10
|
10
3GF-F1171-00-00
Box
|
3GF-F1171-00-00 |
— | ||
|
11
|
11
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
|
12
|
12
3GF-H2131-00-00
Band, Battery
|
3GF-H2131-00-00 |
— | ||
|
13
|
13
3GF-H2129-00-00
Cover, Battery
|
3GF-H2129-00-00 |
— | ||
|
14
|
14
31U-H3936-10-00 Band, Switch Cord |
31U-H3936-10-00 |
from US $0.76 |
||
|
15
|
15
23Y-H3936-00-00 Band, Switch Cord |
23Y-H3936-00-00 |
from US $0.29 |
||
| replacement | |||||
|
15
|
15
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
16
|
16
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
17
|
17
1NT-F8100-00-00
Tool Kit
|
1NT-F8100-00-00 |
— | ||
