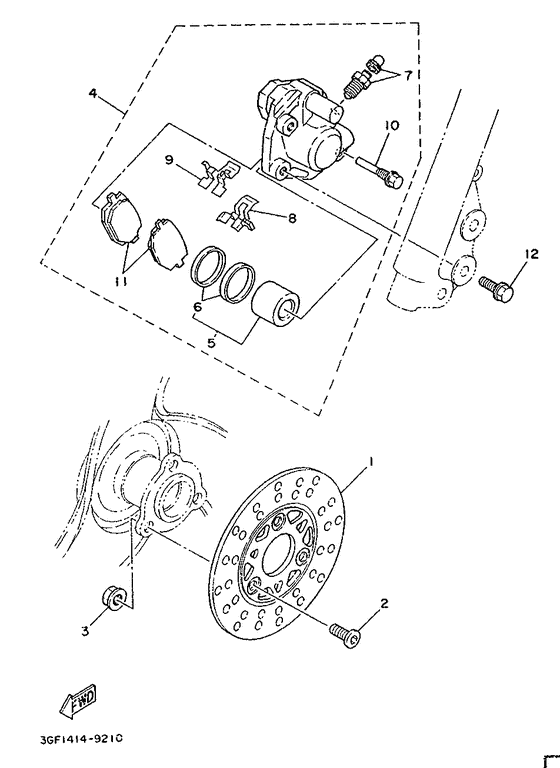

Front brake. caliper Diagram Yamaha CR50z Target
- Year
- 1996
- Colour
- White Metallic 1 (WM1; 0233)
- Model code
- 3WN2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- CR50Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3XG-F582T-00-00 Disc, Brake (Left) |
3XG-F582T-00-00 |
US $158.88 |
||
| replacement | |||||
|
01
|
01
5SU-F582T-00-00 Disc, Brake (Left) |
5SU-F582T-00-00 |
from US $55.46 |
||
|
02
|
02
901-10108-11-00
Bolt, Hexagon Sock
|
901-10108-11-00 |
— | ||
| replacement | |||||
|
02
|
02
90111-10808-00 Bolt, Hexagon Sock |
90111-10808-00 |
from US $1.70 |
||
|
03
|
03
9570L-10500-00 Nut, Flange |
9570L-10500-00 |
US $1.07 |
||
|
04
|
04
3XG-F580T-00-00 Caliper Assy (Left) |
3XG-F580T-00-00 |
US $332.97 |
||
| replacement | |||||
|
04
|
04
3XG-F580T-01-00 Caliper Assy (Left |
3XG-F580T-01-00 |
US $332.97 |
||
|
05
|
05
3XG-W0057-00-00
Piston Assy, Caliper
|
3XG-W0057-00-00 |
— | ||
|
06
|
06
3XG-W0047-00-00 Caliper Seal Kit |
3XG-W0047-00-00 |
US $31.43 |
||
|
07
|
07
3YB-W0048-00-00 Bleed Screw Kit |
3YB-W0048-00-00 |
US $8.50 |
||
| replacement | |||||
|
07
|
07
3XG-W0048-00-00 Breed Screw Kit |
3XG-W0048-00-00 |
from US $2.61 |
||
|
08
|
08
56A-F5919-00-00 Support, Pad |
56A-F5919-00-00 |
US $8.50 |
||
| replacement | |||||
|
08
|
08
3XG-F5919-01-00 Support, Pad |
3XG-F5919-01-00 |
US $8.50 |
||
|
09
|
09
56A-F5919-10-00 Support, Pad |
56A-F5919-10-00 |
US $7.65 |
||
| replacement | |||||
|
09
|
09
3XG-F5919-11-00 Support, Pad |
3XG-F5919-11-00 |
US $7.65 |
||
|
10
|
10
56A-F5926-00-00
Bolt
|
56A-F5926-00-00 |
— | ||
|
11
|
11
3GF-W0045-00-00 Brake Pad Kit |
3GF-W0045-00-00 |
US $48.36 |
||
| replacement | |||||
|
11
|
11
5JU-W0045-00-00 Brake Pad Kit |
5JU-W0045-00-00 |
US $48.36 |
||
|
12
|
12
95827-08030-00 Bolt, Flange |
95827-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
