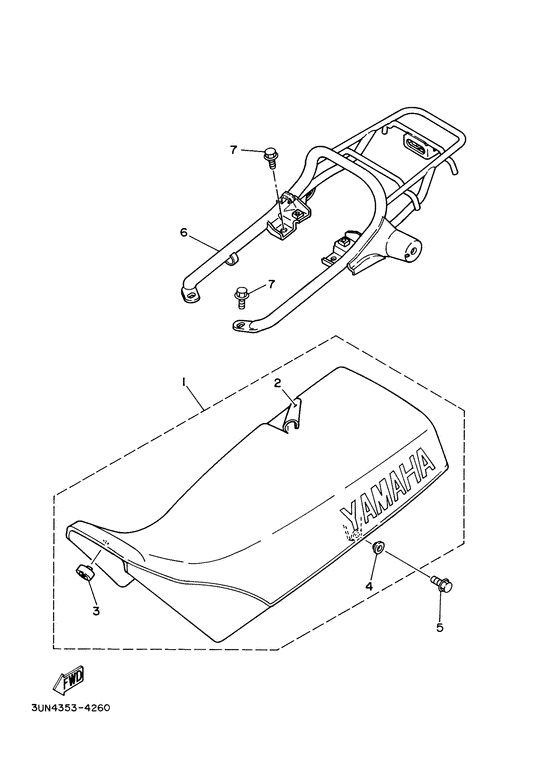

Seat Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
33J-24770-20-00 Semi-Dbl Seat AssemblyUr for vrc7, yb |
33J-24770-20-00 |
US $409.91 |
||
|
01
|
01
33J-24770-80-00
Semi-double seat assy
Ur for dpbmc |
33J-24770-80-00 |
— | ||
|
02
|
02
33J-24731-20-00
Cover, Double Seat
Ur for vrc7, yb |
33J-24731-20-00 |
— | ||
|
02
|
02
33J-24731-80-00
Cover, seat
Ur for dpbmc |
33J-24731-80-00 |
— | ||
|
03
|
03
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
04
|
04
90387-06500-00 Collar |
90387-06500-00 |
from US $1.98 |
||
|
05
|
05
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
06
|
06
17W-24830-10-00
Sub Carrier Assy
|
17W-24830-10-00 |
— | ||
|
07
|
07
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
