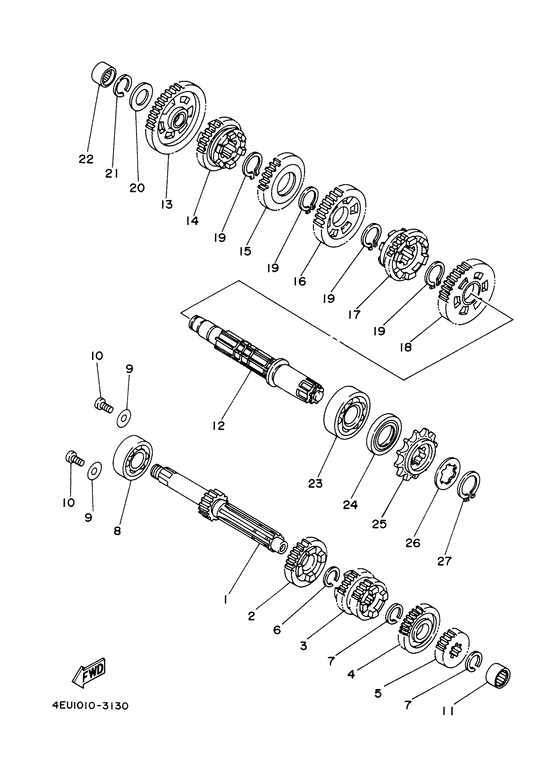

Transmission Diagram Yamaha DT50 DT50
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UN7
- Sales region
- Portugal (010)
- Engine Capacity
- 50
- Model
- DT50LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BA-17411-00-00 Axle, Main (12T) |
4BA-17411-00-00 |
US $114.89 |
||
|
02
|
02
4EU-17151-00-00 Gear, 5Th Pinion (25T) |
4EU-17151-00-00 |
US $91.65 |
||
|
03
|
03
5R2-17131-01-00 Gear, 3Rd Pinion |
5R2-17131-01-00 |
from US $82.62 |
||
|
04
|
04
4EU-17161-00-00
Gear, 6Th Pinion (26T)
|
4EU-17161-00-00 |
— | ||
| replacement | |||||
|
04
|
04
5R2-17161-01-00 Gear, 6Th Pinion |
5R2-17161-01-00 |
US $115 |
||
|
05
|
05
5R2-17121-00-00
Gear, 2Nd Pinion
|
5R2-17121-00-00 |
— | ||
|
06
|
06
93440-17064-00 Circlip |
93440-17064-00 |
from US $2.55 |
||
|
07
|
07
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
08
|
08
93306-20303-00 Bearing |
93306-20303-00 |
from US $15.30 |
||
| replacement | |||||
|
08
|
08
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
09
|
09
90201-06060-00 Washer, Plate |
90201-06060-00 |
from US $1.56 |
||
| replacements | |||||
|
09
|
09
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
09
|
09
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
|
10
|
10
90157-06071-00 Screw, Pan Head |
90157-06071-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
11
|
11
93317-11245-00 Bearing |
93317-11245-00 |
from US $21.11 |
||
|
12
|
12
3TU-17421-00-00
Axle, Drive
|
3TU-17421-00-00 |
— | ||
|
13
|
13
5R2-17211-00-00 Gear, 1St Wheel |
5R2-17211-00-00 |
from US $105.34 |
||
|
14
|
14
4EU-17251-00-00
Gear, 5Th Wheel (26T)
|
4EU-17251-00-00 |
— | ||
| replacement | |||||
|
14
|
14
5R2-17251-01-00
Gear, 5Th Wheel
|
5R2-17251-01-00 |
— | ||
|
15
|
15
5R2-17241-00-00 Gear, 4Th Wheel |
5R2-17241-00-00 |
from US $78.88 |
||
|
16
|
16
5R2-17231-00-00 Gear, 3Rd Wheel |
5R2-17231-00-00 |
US $78.88 |
||
|
17
|
17
4EU-17261-00-00 Gear, 6Th Wheel (24T) |
4EU-17261-00-00 |
US $115.31 |
||
| replacement | |||||
|
17
|
17
5R2-17261-01-00 Gear, 6Th Wheel |
5R2-17261-01-00 |
from US $76.63 |
||
|
18
|
18
5R2-17221-00-00 Gear, 2Nd Wheel |
5R2-17221-00-00 |
from US $69.70 |
||
|
19
|
19
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
20
|
20
164-17427-00-00 Shim 1 |
164-17427-00-00 |
US $3.12 |
||
| replacement | |||||
|
20
|
20
164-17427-00-10 Shim 1 |
164-17427-00-10 |
from US $3.12 |
||
|
21
|
21
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
21
|
21
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
22
|
22
93315-31502-00 Bearing |
93315-31502-00 |
from US $11.58 |
||
|
23
|
23
93306-20401-00 Bearing |
93306-20401-00 |
from US $15.02 |
||
| replacements | |||||
|
23
|
23
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.02 |
||
|
23
|
23
93306-204Y7-00
Bearing
|
93306-204Y7-00 |
— | ||
|
24
|
24
931-02201-43-00 Oil Seal |
931-02201-43-00 |
from US $6.66 |
||
|
25
|
25
3TU-17460-00-00 Drive Sprocket Assy (12T) |
3TU-17460-00-00 |
from US $26.39 |
||
|
26
|
26
90209-16209-00 Washer |
90209-16209-00 |
from US $1.84 |
||
|
27
|
27
99009-18400-00 Circlip |
99009-18400-00 |
from US $1.56 |
||
