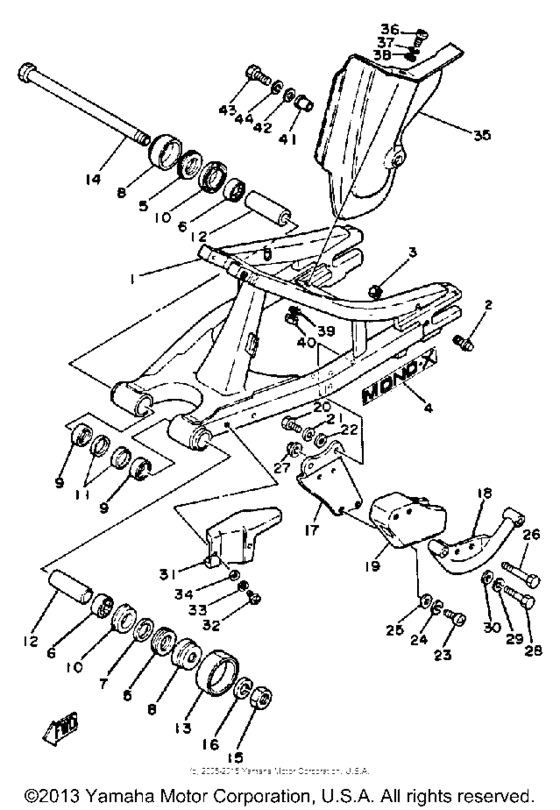

Rear arm & suspension Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-22110-00-35
Rear Arm
|
4V5-22110-00-35 |
— | ||
|
2
|
2
901-09085-99-00
Bolt
|
901-09085-99-00 |
— | ||
|
3
|
3
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
3
|
3
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
4
|
4
4V4-2218A-00-00
Reflector (250H)
250H |
4V4-2218A-00-00 |
— | ||
|
5
|
5
93342-22208-00 Bearing |
93342-22208-00 |
from US $34.71 |
||
|
6
|
6
933-17222-14-00 Bearing, Cylinder.#17 |
933-17222-14-00 |
from US $29.75 |
||
|
7
|
7
648-45533-00-03 Shim |
648-45533-00-03 |
from US $3.97 |
||
| replacement | |||||
|
7
|
7
902-01222-84-04 Washer, Plate |
902-01222-84-04 |
US $3.82 |
||
|
8
|
8
3R4-22129-00-00 Cover, Thrust 2 |
3R4-22129-00-00 |
from US $20.83 |
||
|
9
|
9
90386-22097-00 Bush, Spec''l Nylon |
90386-22097-00 |
US $20.56 |
||
|
10
|
10
93108-35004-00 Oil Seal (35-41-8)35-41-8 |
93108-35004-00 |
from US $7.37 |
||
|
11
|
11
93109-22018-00
Oil Seal, Sdo-Type
|
93109-22018-00 |
— | ||
|
12
|
12
90380-16077-00 Bush, Solid |
90380-16077-00 |
from US $45.88 |
||
|
13
|
13
431-22151-03-00 Seal, Guard |
431-22151-03-00 |
from US $19.41 |
||
|
14
|
14
3R4-22141-00-00 Shaft, Pivot |
3R4-22141-00-00 |
from US $84.85 |
||
| replacement | |||||
|
14
|
14
5X6-22141-01-00 Shaft, Pivot |
5X6-22141-01-00 |
from US $119.92 |
||
|
15
|
15
901-70161-11-00
Nut
|
901-70161-11-00 |
— | ||
|
16
|
16
902-01160-F6-00 Washer, Plate |
902-01160-F6-00 |
from US $7.37 |
||
|
17
|
17
2X4-22179-00-00
Arm, Tensioner
|
2X4-22179-00-00 |
— | ||
|
18
|
18
3R5-22153-00-00
Guard, Chain
|
3R5-22153-00-00 |
— | ||
|
19
|
19
2X4-22199-00-00 Support, Chain |
2X4-22199-00-00 |
from US $38.68 |
||
|
20
|
20
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
20
|
20
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
22
|
22
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
23
|
23
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
25
|
25
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
26
|
26
97313-06050-00 Bolt (661)661 |
97313-06050-00 |
from US $1.58 |
||
| replacement | |||||
|
26
|
26
97013-06050-00 Bolt661 |
97013-06050-00 |
from US $1.57 |
||
|
27
|
27
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
28
|
28
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
28
|
28
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
31
|
31
3R4-22147-00-00 Protector, Chain |
3R4-22147-00-00 |
from US $20.12 |
||
|
32
|
32
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
32
|
32
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
33
|
33
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
34
|
34
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
35
|
35
4V5-22311-00-00
Case, Chain
|
4V5-22311-00-00 |
— | ||
|
36
|
36
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
38
|
38
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
38
|
38
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
39
|
39
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
39
|
39
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
40
|
40
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
40
|
40
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
41
|
41
90560-08066-00 Collar |
90560-08066-00 |
from US $2.69 |
||
| replacement | |||||
|
41
|
41
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
42
|
42
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
43
|
43
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
43
|
43
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
43
|
43
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
44
|
44
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
