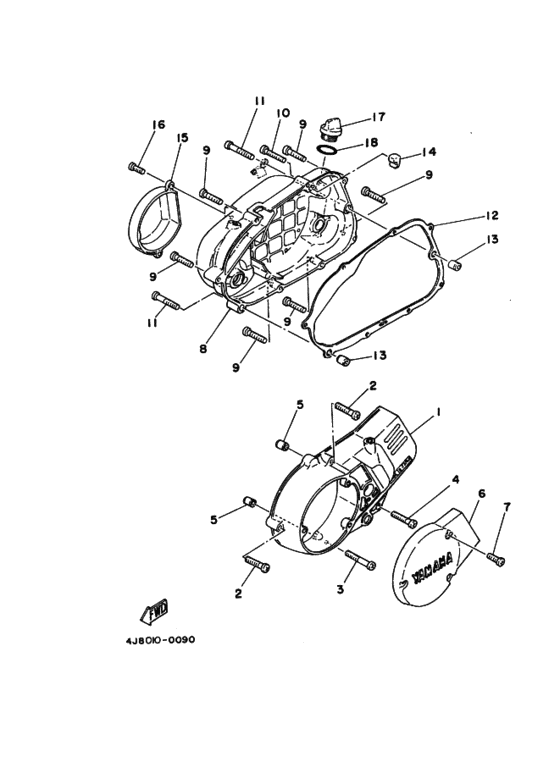

Crankcase cover assy Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M7-15411-00-00
Cover, Crankcase L
カバー，クランクケース １; |
3M7-15411-00-00 |
— | ||
|
2
|
2
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
2
|
2
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
3
|
3
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
3
|
3
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
4
|
4
92501-06045-00 Screw, Pan Head (92503-06045-00 |
92501-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
91830-21014-00 Pin, Dowel |
91830-21014-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
5
|
5
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
6
|
6
3M7-15415-00-00 Cover, 1カバー，ゼネレータ; |
3M7-15415-00-00 |
US $52.15 |
||
|
7
|
7
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
8
|
8
3M7-15421-00-00
Cover, Crankcase R
カバー，クランクケース ２; |
3M7-15421-00-00 |
— | ||
|
9
|
9
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
9
|
9
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
10
|
10
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.36 |
||
|
10
|
10
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
11
|
11
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
12
|
12
353-15451-00-00 Gasket, Crankcase Cover 1ガスケツト，クランクケースカバー; |
353-15451-00-00 |
from US $20.54 |
||
| replacement | |||||
|
12
|
12
3MT-15451-00-00 Gasket, Crcs Coverガスケツト，クランクケースカバー; |
3MT-15451-00-00 |
from US $19.72 |
||
|
13
|
13
91810-02014-00 Pin, Dowel |
91810-02014-00 |
US $1.07 |
||
| replacements | |||||
|
13
|
13
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
13
|
13
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
14
|
14
353-15437-02-00
Scraper, Oil
スクレーパ，オイル; |
353-15437-02-00 |
— | ||
|
15
|
15
3M7-15416-00-00
Cover, Oil Pump
カバー，オイルポンプ; |
3M7-15416-00-00 |
— | ||
|
16
|
16
92501-06015-00 Screw |
92501-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
353-15362-00-00
Plug, Oil Level
|
353-15362-00-00 |
— | ||
| replacement | |||||
|
17
|
17
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
18
|
18
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
