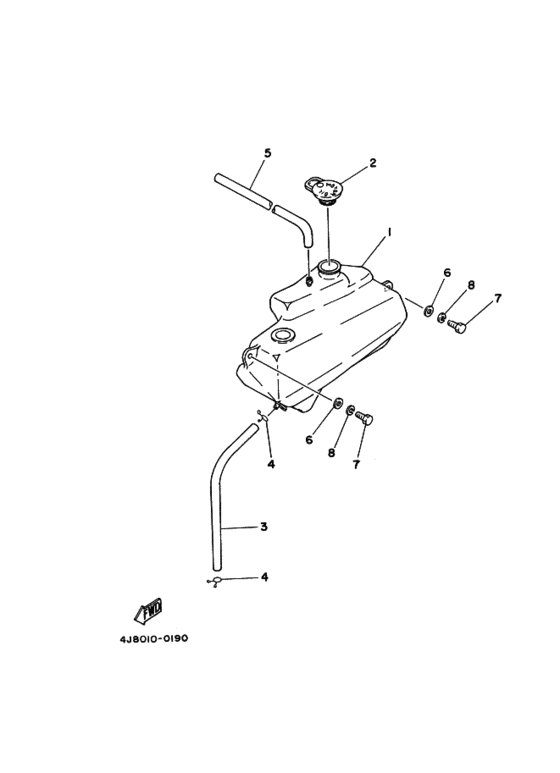

Oil tank Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-21751-00-00
Tank, Oil
|
3T2-21751-00-00 |
— | ||
|
2
|
2
1T9-21771-00-00 Body, Cap |
1T9-21771-00-00 |
from US $9.94 |
||
| replacement | |||||
|
2
|
2
1T9-21771-01-00 BODY CAP |
1T9-21771-01-00 |
from US $5.74 |
||
|
3
|
3
90445-09226-00 Hose (L420)ホース; |
90445-09226-00 |
from US $5.98 |
||
| replacements | |||||
|
3
|
3
904-45092-K1-00 Hose (L420)ホース; |
904-45092-K1-00 |
from US $5.06 |
||
|
3
|
3
904-45090-F6-00 Hose (L1500)ホース; |
904-45090-F6-00 |
from US $6.40 |
||
|
4
|
4
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.65 |
||
|
5
|
5
1V1-21745-00-00 Pipe, Oil Tank Breatherパイプ，オイルタンクブリーザ; |
1V1-21745-00-00 |
US $6.88 |
||
|
6
|
6
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.13 |
||
| replacement | |||||
|
6
|
6
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.55 |
||
|
7
|
7
97306-06016-00 Bolt |
97306-06016-00 |
from US $1.05 |
||
| replacement | |||||
|
7
|
7
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.05 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $1.28 |
||
