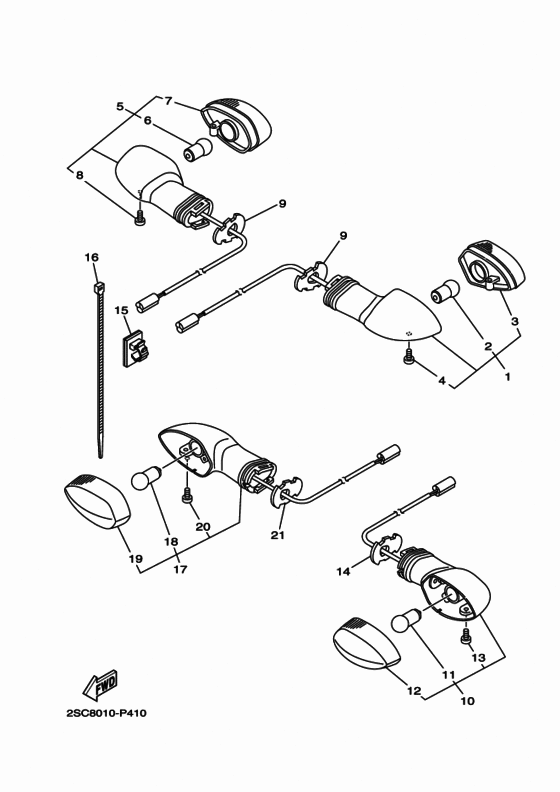

Flasher light Diagram Yamaha MT09/ MTN850 MT-09 Tracer
- Year
- 2016
- Colour
- Mat Silver 1
- Model code
- 2SCK
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- MT-09 Tracer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2PP-83330-00-00 Rear Flasher Light Assy 1 |
2PP-83330-00-00 |
US $36.34 |
||
|
2
|
2
1KB-83311-00-00 Bulb, Flasher (12V-10W)１２Ｖ−１０Ｗ |
1KB-83311-00-00 |
US $7.08 |
||
|
3
|
3
1KB-8334A-00-00 Lens Comp 2 |
1KB-8334A-00-00 |
from US $7.79 |
||
|
4
|
4
3D9-H3333-10-00 Screw, Lens Fitting |
3D9-H3333-10-00 |
US $1.70 |
||
|
5
|
5
2PP-83340-00-00 Rear Flasher Light Assy 2 |
2PP-83340-00-00 |
US $36.34 |
||
|
6
|
6
1KB-83311-00-00 Bulb, Flasher (12V-10W)１２Ｖ−１０Ｗ |
1KB-83311-00-00 |
US $7.08 |
||
|
7
|
7
1KB-8333A-00-00 Lens Comp 1 |
1KB-8333A-00-00 |
from US $7.79 |
||
|
8
|
8
3D9-H3333-10-00 Screw, Lens Fitting |
3D9-H3333-10-00 |
US $1.70 |
||
|
9
|
9
3D7-83318-10-00 Stay, Flasher 1 |
3D7-83318-10-00 |
from US $1.84 |
||
|
10
|
10
2PP-83310-00-00 Front Flasher Light Assy 1 |
2PP-83310-00-00 |
from US $36.50 |
||
|
11
|
11
1KB-83311-00-00 Bulb, Flasher (12V-10W)１２Ｖ−１０Ｗ |
1KB-83311-00-00 |
US $7.08 |
||
|
12
|
12
1KB-8333A-00-00 Lens Comp 1 |
1KB-8333A-00-00 |
from US $7.79 |
||
|
13
|
13
3D9-H3333-10-00 Screw, Lens Fitting |
3D9-H3333-10-00 |
US $1.70 |
||
|
14
|
14
3D7-83318-10-00 Stay, Flasher 1 |
3D7-83318-10-00 |
from US $1.84 |
||
|
15
|
15
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
16
|
16
90465-15011-00 Clamp |
90465-15011-00 |
from US $1.84 |
||
|
17
|
17
2PP-83320-00-00 Front Flasher Light Assy 2 |
2PP-83320-00-00 |
US $51.40 |
||
|
18
|
18
1KB-83311-00-00 Bulb, Flasher (12V-10W)１２Ｖ−１０Ｗ |
1KB-83311-00-00 |
US $7.08 |
||
|
19
|
19
1KB-8334A-00-00 Lens Comp 2 |
1KB-8334A-00-00 |
from US $7.79 |
||
|
20
|
20
3D9-H3333-10-00 Screw, Lens Fitting |
3D9-H3333-10-00 |
US $1.70 |
||
|
21
|
21
3D7-83318-10-00 Stay, Flasher 1 |
3D7-83318-10-00 |
from US $1.84 |
