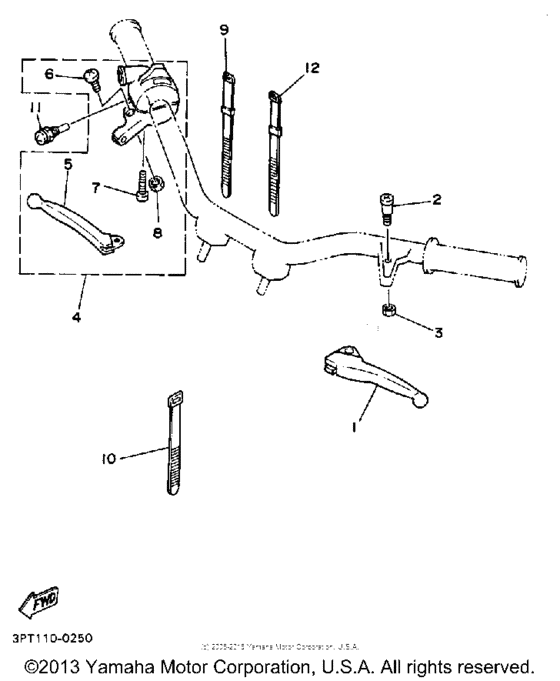

Handle switch & lever Diagram Yamaha PW50 Zinger
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 50
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53L-83912-00-00 Lever L |
53L-83912-00-00 |
US $16.81 |
||
|
2
|
2
90149-05162-00 Screw |
90149-05162-00 |
from US $1.70 |
||
|
3
|
3
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
3
|
3
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
4
|
4
4X4-82920-01-00 Lever Holder Assy (R |
4X4-82920-01-00 |
from US $124.13 |
||
| replacement | |||||
|
4
|
4
4X4-82920-02-00 Lever Holder Assy (Right) |
4X4-82920-02-00 |
from US $128.63 |
||
|
5
|
5
2T4-83922-01-00 Lever 2 |
2T4-83922-01-00 |
from US $12.61 |
||
| replacement | |||||
|
5
|
5
2T4-83922-03-00 Lever 2 |
2T4-83922-03-00 |
from US $9.10 |
||
|
6
|
6
90149-05119-00 Screw (2E9) |
90149-05119-00 |
from US $1.70 |
||
|
7
|
7
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
7
|
7
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
7
|
7
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
8
|
8
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
8
|
8
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
9
|
9
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
10
|
10
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
11
|
11
4X4-26257-00-00 Stopper |
4X4-26257-00-00 |
from US $1.36 |
||
|
12
|
12
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
