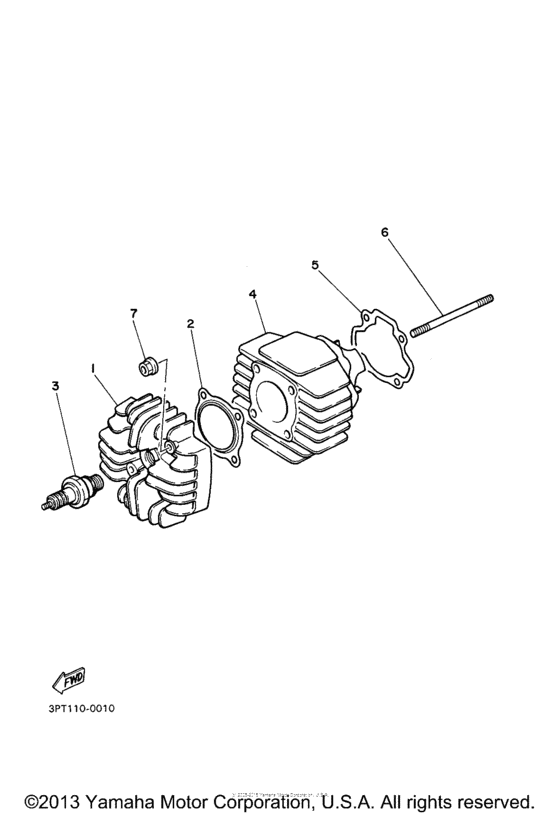

Cylinder Diagram Yamaha PW50 Zinger
- Year
- 2012
- Sales region
- USA
- Engine Capacity
- 50
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4J2-11111-00-00 Head, Cylinder 1 |
4J2-11111-00-00 |
from US $87.87 |
||
| replacement | |||||
|
1
|
1
4J2-11111-01-00 Head, Cylinder 1 |
4J2-11111-01-00 |
from US $87.26 |
||
|
2
|
2
517-11181-01-00 Gasket, Cylinder Head 1 |
517-11181-01-00 |
from US $1.70 |
||
|
3
|
3
94701-00159-00
Plug, Spark (Ngk Bp4Hs)
UR |
94701-00159-00 |
— | ||
| replacements | |||||
|
3
|
3
BP4-HS000-00-00 12 W/V DOCK LINE, SUR |
BP4-HS000-00-00 |
US $4.23 |
||
|
3
|
3
BPR-4HS00-00-00 BPR4HS NGK SPLUG 1UR |
BPR-4HS00-00-00 |
US $49 |
||
|
4
|
4
4J2-11311-00-00 Cylinder 1 |
4J2-11311-00-00 |
from US $232.11 |
||
| replacement | |||||
|
4
|
4
4J2-11311-01-00 Cylinder 1 |
4J2-11311-01-00 |
from US $232.11 |
||
|
4
|
4
94701-00171-00 Plug, Spark (Nd W14Fp-L)W14FP-L UR |
94701-00171-00 |
US $4.23 |
||
| replacements | |||||
|
4
|
4
BP4-HS000-00-00 12 W/V DOCK LINE, SW14FP-L UR |
BP4-HS000-00-00 |
US $4.23 |
||
|
4
|
4
BPR-4HS00-00-00 BPR4HS NGK SPLUG 1W14FP-L UR |
BPR-4HS00-00-00 |
US $49 |
||
|
5
|
5
3PT-11351-00-00 Gasket, Cylinder |
3PT-11351-00-00 |
from US $2.02 |
||
|
6
|
6
90116-06418-00 Bolt, Stud |
90116-06418-00 |
from US $1.70 |
||
|
7
|
7
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
