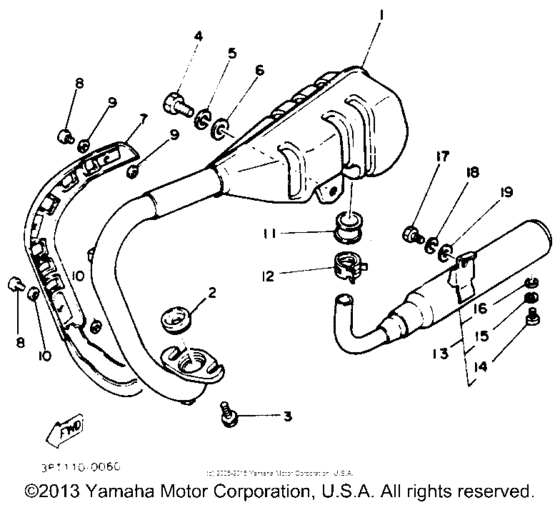

Exhaust Diagram Yamaha PW50 Zinger
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 50
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4X4-14610-01-00 Exhaust Pipe Assy 1 |
4X4-14610-01-00 |
from US $151.98 |
||
|
2
|
2
4X4-14623-10-00 Gasket, Exhaust Pipe |
4X4-14623-10-00 |
from US $12.18 |
||
| replacement | |||||
|
2
|
2
4X4-14623-11-00 GASKET EXHAUST PIPE |
4X4-14623-11-00 |
from US $4.72 |
||
|
3
|
3
90153-06057-00 Screw, Hexagon |
90153-06057-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
90153-06061-00 Screw, Hexagon |
90153-06061-00 |
from US $1.84 |
||
|
4
|
4
97001-08020-00 Bolt |
97001-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.70 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
6
|
6
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
7
|
7
4X4-14708-00-00 Protector Assy |
4X4-14708-00-00 |
from US $30.60 |
||
|
8
|
8
90157-05003-00 Screw, Pan Head |
90157-05003-00 |
from US $2.13 |
||
| replacement | |||||
|
8
|
8
985-07050-06-00 Screw, Pan Head |
985-07050-06-00 |
from US $2.13 |
||
|
9
|
9
90430-04167-00 Washer, Plate |
90430-04167-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
90202-04214-00 Washer, Plate |
90202-04214-00 |
from US $1.84 |
||
|
10
|
10
90430-05008-00 Washer, Protector |
90430-05008-00 |
from US $1.48 |
||
| replacement | |||||
|
10
|
10
3RV-14766-00-00 Washer, Protector |
3RV-14766-00-00 |
from US $1.36 |
||
|
11
|
11
4X4-14714-00-00 Gasket, Muffler |
4X4-14714-00-00 |
from US $7.49 |
||
|
12
|
12
90467-22048-00 Clip |
90467-22048-00 |
from US $1.28 |
||
|
13
|
13
4X4-14750-00-00 Silencer Assy |
4X4-14750-00-00 |
from US $123.65 |
||
|
14
|
14
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
17
|
17
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
