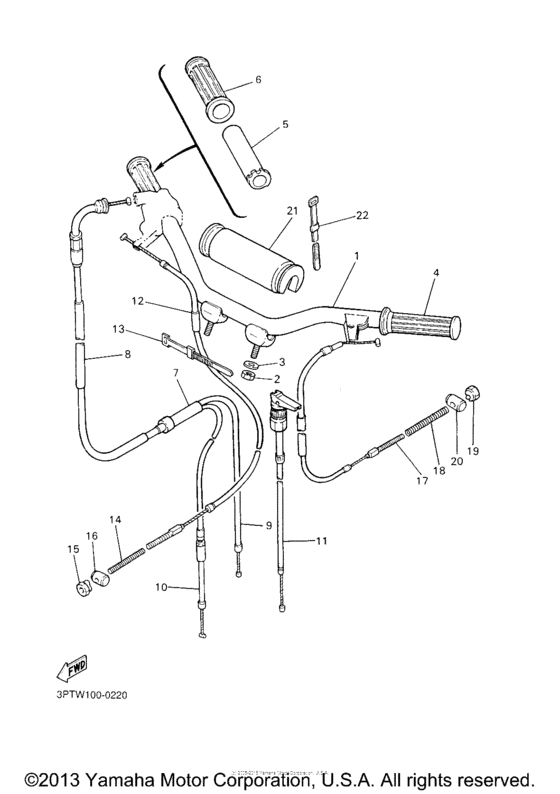

Steering handle & cable Diagram Yamaha PW50 Zinger
- Year
- 2001
- Sales region
- USA
- Engine Capacity
- 50
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3PT-26111-00-00 Handlebar |
3PT-26111-00-00 |
from US $39.74 |
||
|
2
|
2
95607-08100-00 Nut, U |
95607-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
3
|
3
2E9-26129-00-00 Washer |
2E9-26129-00-00 |
from US $2.98 |
||
|
4
|
4
4X4-26241-00-00 Grip |
4X4-26241-00-00 |
from US $4.38 |
||
|
5
|
5
4X4-26243-00-00 Tube, Throttle Guide |
4X4-26243-00-00 |
from US $9.49 |
||
|
6
|
6
4X4-26242-00-00 Grip (Right) |
4X4-26242-00-00 |
from US $4.38 |
||
|
7
|
7
266-26261-00-00 Connector, Cable |
266-26261-00-00 |
from US $20.11 |
||
| replacement | |||||
|
7
|
7
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $20.97 |
||
|
8
|
8
4X4-26311-10-00 Cable, Throttle 1USA |
4X4-26311-10-00 |
from US $19.19 |
||
| replacement | |||||
|
8
|
8
4X4-26311-11-00 WIRE THROTTLE 1USA |
4X4-26311-11-00 |
from US $18.18 |
||
|
9
|
9
4X4-26312-10-00 Cable, Throttle 2USA |
4X4-26312-10-00 |
from US $11.99 |
||
|
10
|
10
4X4-26321-10-00 Cable, Pump |
4X4-26321-10-00 |
from US $17.85 |
||
|
11
|
11
4X4-26331-01-00 Cable, Starter 1USA |
4X4-26331-01-00 |
from US $16.50 |
||
|
12
|
12
3PT-26341-00-00 Wire, Brake 1USA |
3PT-26341-00-00 |
from US $9.78 |
||
|
13
|
13
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
14
|
14
90501-10513-00 Spring, Compression |
90501-10513-00 |
from US $1.70 |
||
|
15
|
15
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
16
|
16
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
17
|
17
4X4-26351-10-00 Cable, Brake |
4X4-26351-10-00 |
from US $12.46 |
||
|
18
|
18
90501-10074-00 Spring, Compression |
90501-10074-00 |
from US $1.70 |
||
|
19
|
19
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
20
|
20
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
21
|
21
36R-26124-10-00 Protector, Handlebar |
36R-26124-10-00 |
from US $12.12 |
||
|
22
|
22
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
