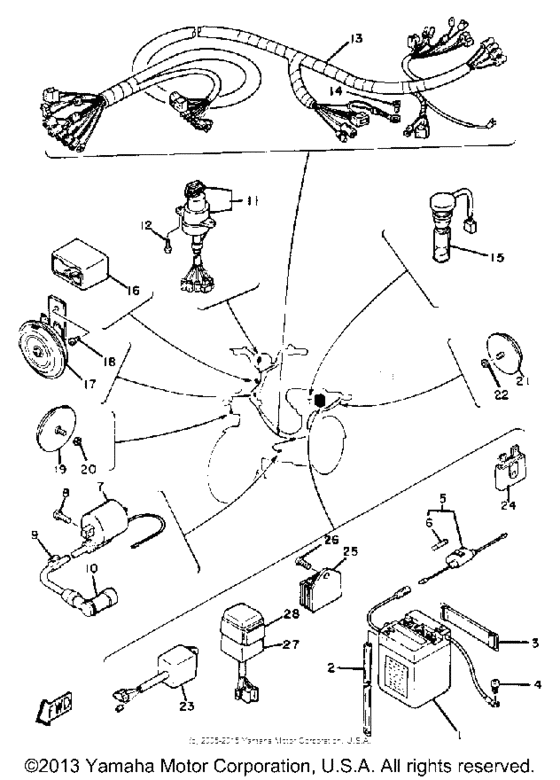

Electrical (1) Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
3L5-82112-00-00
Pipe, Breather
|
3L5-82112-00-00 |
— | ||
|
3
|
3
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
5
|
5
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
5
|
5
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
US $14.99 |
||
|
6
|
6
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
7
|
7
5M0-82310-M0-00
Ignition Coil Assemb
|
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
7
|
7
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
7
|
7
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
7
|
7
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
7
|
7
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
8
|
8
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
8
|
8
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
9
|
9
90468-15020-00 Clip |
90468-15020-00 |
from US $1.21 |
||
|
10
|
10
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
11
|
11
4Y9-82508-20-00
Main Switch Assembly
|
4Y9-82508-20-00 |
— | ||
|
12
|
12
98901-04016-00 Screw |
98901-04016-00 |
US $2.69 |
||
| replacement | |||||
|
12
|
12
98980-04016-00 Screw |
98980-04016-00 |
US $2.69 |
||
|
13
|
13
4Y9-82590-20-00
Wire Harness Assembly
|
4Y9-82590-20-00 |
— | ||
|
14
|
14
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
15
|
15
5M0-85720-00-00
Oil Lvl Gauge Assembly
|
5M0-85720-00-00 |
— | ||
|
16
|
16
3BK-83350-00-00 Flasher Relay Assembly |
3BK-83350-00-00 |
from US $51.40 |
||
|
17
|
17
36X-83371-11-00 Horn |
36X-83371-11-00 |
from US $55.40 |
||
|
18
|
18
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
19
|
19
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
20
|
20
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
21
|
21
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $9.60 |
||
|
22
|
22
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
23
|
23
3L4-85540-M1-00 Cdi Unit Assembly (5G3-85540-M05G3-85540-M0 |
3L4-85540-M1-00 |
from US $172.46 |
||
|
24
|
24
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
24
|
24
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
24
|
24
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
25
|
25
4F4-81910-60-00 Voltage Reg Assembly |
4F4-81910-60-00 |
from US $133.05 |
||
|
26
|
26
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
27
|
27
5U9-85590-M0-00
Control Unit Assembly
|
5U9-85590-M0-00 |
— | ||
|
28
|
28
4J2-85546-00-00 Band |
4J2-85546-00-00 |
from US $2 |
||
