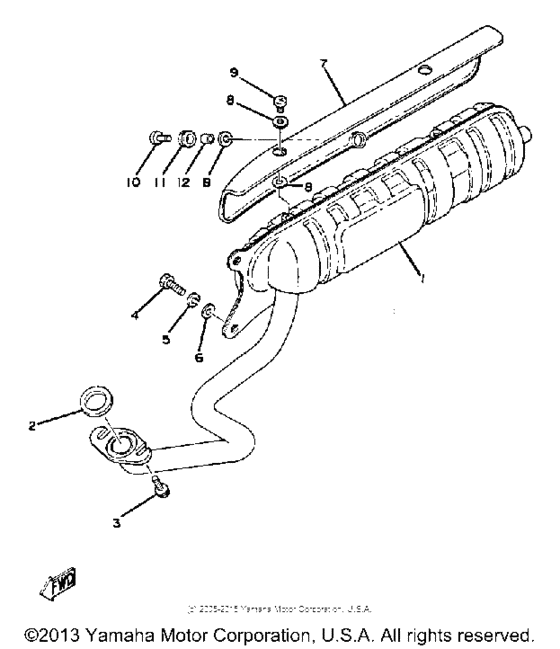

Exhaust Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L4-14610-00-00
Exhaust Pipe Assembly L
|
4L4-14610-00-00 |
— | ||
|
2
|
2
2E9-14613-10-00 Gasket, Exst Pipe |
2E9-14613-10-00 |
from US $10.19 |
||
|
3
|
3
90153-06057-00 Screw, Hexagon |
90153-06057-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
90153-06061-00 Screw, Hexagon |
90153-06061-00 |
from US $1.84 |
||
|
4
|
4
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
4
|
4
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
4
|
4
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
6
|
6
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
7
|
7
3L5-14718-00-35
Protector, Muff 1
SILVER |
3L5-14718-00-35 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
SILVER |
999-99999-99-00 |
— | ||
|
8
|
8
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
9
|
9
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
11
|
11
90480-12237-00 Grommet |
90480-12237-00 |
from US $1.35 |
||
|
12
|
12
90387-06023-00 Collar 8121444900 |
90387-06023-00 |
from US $1.28 |
||
