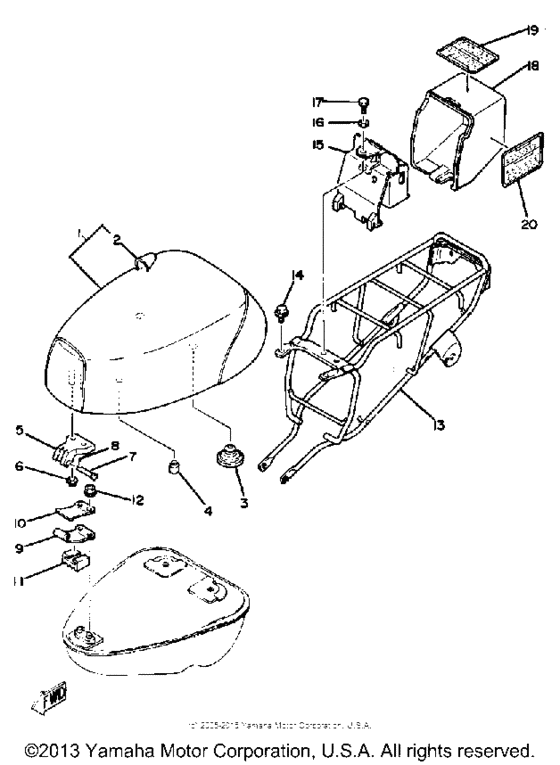

Seat Diagram Yamaha QT50
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 50
- Model
- QT50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3L8-W2471-00-00
Single Seat Assembly
|
3L8-W2471-00-00 |
— | ||
|
2
|
2
3L8-24711-00-00
Cover, Single Seat
|
3L8-24711-00-00 |
— | ||
|
3
|
3
3L8-24724-00-00
Damper, Seat
|
3L8-24724-00-00 |
— | ||
|
4
|
4
278-27114-00-00 Stopper, Main Stand |
278-27114-00-00 |
from US $4.68 |
||
|
5
|
5
3L5-24726-00-00
Hinge, Seat
|
3L5-24726-00-00 |
— | ||
|
6
|
6
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
7
|
7
91701-08035-00 Pin |
91701-08035-00 |
from US $2.98 |
||
|
8
|
8
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
9
|
9
3L5-24783-00-00
Spring, Cushion
|
3L5-24783-00-00 |
— | ||
|
10
|
10
3L5-24781-00-00
Support, Spring 1
|
3L5-24781-00-00 |
— | ||
|
11
|
11
3L5-24714-00-00
Stopper, Cushion
|
3L5-24714-00-00 |
— | ||
|
12
|
12
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
13
|
13
3L8-24842-00-00
Carrier, Rear
|
3L8-24842-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
15
|
15
3L8-21240-00-00
Box, Air Cleaner
|
3L8-21240-00-00 |
— | ||
|
16
|
16
90201-06050-00 Washer, Plate |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
17
|
17
970-13060-12-00
Bolt
661 |
970-13060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt661 |
970-80060-12-00 |
from US $1.98 |
||
|
18
|
18
3L8-21731-00-00
Cover, Side 3
U.R.SUNSHINE RED |
3L8-21731-00-00 |
— | ||
|
18
|
18
3L8-21731-30-00
Cover Side 3
U.R.MAJOLICA BLUE |
3L8-21731-30-00 |
— | ||
|
19
|
19
3L8-21668-10-00
Label, Tire
|
3L8-21668-10-00 |
— | ||
|
20
|
20
5U9-2415E-00-00
Label, Caution
|
5U9-2415E-00-00 |
— | ||
