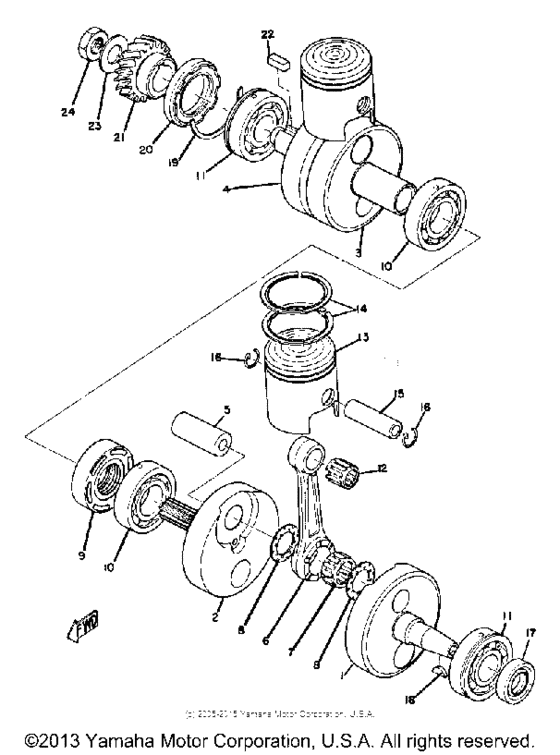

Crankshaft & Piston Diagram Yamaha R3/ R5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 500
- Model
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-11400-00-00
Crankshaft Assembly
|
360-11400-00-00 |
— | ||
|
1
|
1
278-11412-00-00
Crank 1
|
278-11412-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
278-11422-00-00
Crank 2
|
278-11422-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
278-11432-00-00
Crank 3
|
278-11432-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
278-11442-00-00
Crank 4
|
278-11442-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
8G8-11681-00-00 Pin, Crank 1 |
8G8-11681-00-00 |
from US $62.41 |
||
|
6
|
6
34X-11651-00-00 Rod, Connecting |
34X-11651-00-00 |
from US $43.64 |
||
|
7
|
7
933-10422-77-00
Bearing, Cylinder
|
933-10422-77-00 |
— | ||
| replacement | |||||
|
7
|
7
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $24.80 |
||
|
8
|
8
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
9
|
9
278-11515-00-00
Seal, Labyrinth 1
|
278-11515-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
933-06206-21-00 Bearing |
933-06206-21-00 |
from US $48.94 |
||
|
11
|
11
93306-30549-00 Bearing(1Ua) |
93306-30549-00 |
from US $45.30 |
||
|
12
|
12
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $8.28 |
||
|
13
|
13
278-11631-09-96
Piston Std
|
278-11631-09-96 |
— | ||
|
13
|
13
278-11635-09-00
Piston 1 O/s 0.25
O/S 0.25 ALT. PART |
278-11635-09-00 |
— | ||
|
13
|
13
278-11636-09-00
Piston 2 O/s 0.50
O/S 0.50 ALT. PART |
278-11636-09-00 |
— | ||
|
13
|
13
278-11637-09-00
Piston 3 O/s 0.75
O/S 0.75 ALT. PART |
278-11637-09-00 |
— | ||
|
13
|
13
278-11638-09-00
Piston 4 O/s 1.00
O/S 1.00 ALT. PART |
278-11638-09-00 |
— | ||
|
14
|
14
278-11610-01-00
Piston Ringset Std
|
278-11610-01-00 |
— | ||
|
14
|
14
360-11610-02-00
Piston Ringset Std
|
360-11610-02-00 |
— | ||
|
14
|
14
278-11610-11-00
Piston Ringset 1St
1ST F/0021955 |
278-11610-11-00 |
— | ||
|
14
|
14
360-11610-12-00
Piston Ringset 1St
1ST |
360-11610-12-00 |
— | ||
|
14
|
14
278-11610-21-00
Piston Ringset 2Nd
2ND F/0021955 |
278-11610-21-00 |
— | ||
|
14
|
14
360-11610-22-00
Piston Ringset 2Nd
2ND |
360-11610-22-00 |
— | ||
|
14
|
14
278-11610-31-00
Piston Ringset 3Rd
3RD F/0021955 |
278-11610-31-00 |
— | ||
|
14
|
14
360-11610-32-00
Piston Ringset 3Rd
3RD |
360-11610-32-00 |
— | ||
|
14
|
14
278-11610-41-00
Piston Ringset 4Th
4TH F/0021955 |
278-11610-41-00 |
— | ||
|
14
|
14
360-11610-42-00
Piston Ringset 4Th
4TH |
360-11610-42-00 |
— | ||
|
15
|
15
4L0-11633-00-00 Pin, Piston |
4L0-11633-00-00 |
from US $8.60 |
||
|
16
|
16
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
17
|
17
931-03200-46-00
Oil Seal, Sw-Type
|
931-03200-46-00 |
— | ||
|
18
|
18
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
19
|
19
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $3.64 |
||
|
20
|
20
931-03400-58-00
Oil Seal, Sw-Type
|
931-03400-58-00 |
— | ||
|
21
|
21
278-16111-01-00
Gear, Pri Drive
M4-038 |
278-16111-01-00 |
— | ||
|
22
|
22
90282-07023-00 Key, Straight (584) |
90282-07023-00 |
from US $5.24 |
||
|
23
|
23
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $7.93 |
||
|
24
|
24
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
24
|
24
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
25
|
25
278-11630-01-00
Piston Kit Std
|
278-11630-01-00 |
— | ||
|
26
|
26
278-11630-11-00
Piston Kit 1St
1ST |
278-11630-11-00 |
— | ||
|
27
|
27
278-11636-09-00
Piston 2 O/s 0.50
O/S 0.50 |
278-11636-09-00 |
— | ||
