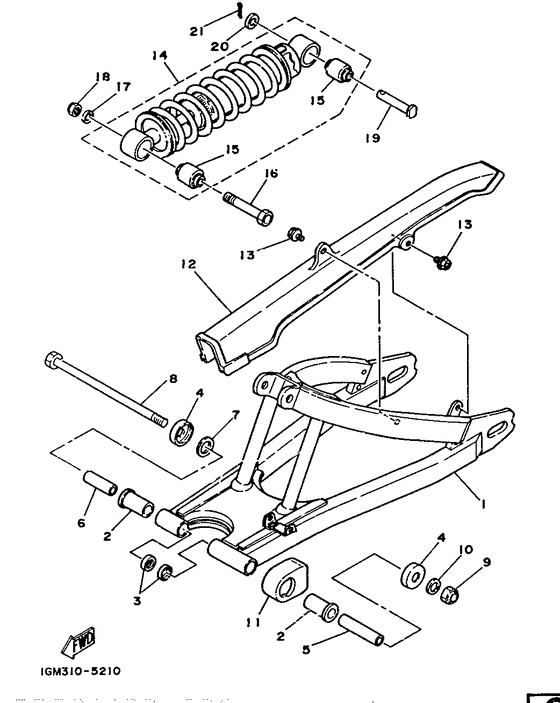

Rear arm. suspension Diagram Yamaha RD
- Year
- 1986
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 2HK
- Sales region
- England (999)
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1GU-22110-00-33
Rear Arm Comp
Yamaha black |
1GU-22110-00-33 |
— | ||
|
02
|
02
90386-18028-00 Bush |
90386-18028-00 |
from US $8.28 |
||
|
03
|
03
931-09180-20-00 Oil Seal |
931-09180-20-00 |
from US $9.35 |
||
|
04
|
04
401-22128-01-00 Cover, Thrust 1 |
401-22128-01-00 |
from US $8.28 |
||
|
05
|
05
90387-121G8-00 Collar |
90387-121G8-00 |
US $29.89 |
||
|
06
|
06
90387-121G9-00 Collar |
90387-121G9-00 |
US $16.86 |
||
| replacement | |||||
|
06
|
06
90380-12121-00 Bush, Solid (31J) |
90380-12121-00 |
from US $16.86 |
||
|
07
|
07
401-22127-00-00 ShimUn |
401-22127-00-00 |
from US $3.12 |
||
|
08
|
08
4V0-22141-00-00
Shaft, Pivot
|
4V0-22141-00-00 |
— | ||
|
09
|
09
90185-12046-00 Nut, Self-Locking |
90185-12046-00 |
from US $6.38 |
||
| replacement | |||||
|
09
|
09
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.30 |
||
|
10
|
10
92901-12200-00 Washer, Plain |
92901-12200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
11
|
11
10W-22151-01-00
Seal, Guard
|
10W-22151-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
10W-22311-01-00
Case, Chain
|
10W-22311-01-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90119-05062-00 Bolt, With Washer |
90119-05062-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.21 |
||
|
14
|
14
10W-22210-00-00
Shock Absorber Assy, Rear
|
10W-22210-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1W1-22216-00-00 Bush, Rear Shock Absorber |
1W1-22216-00-00 |
from US $27.77 |
||
| replacement | |||||
|
15
|
15
1YW-22216-00-00 Bush, Rear Shock Absorber |
1YW-22216-00-00 |
from US $27.77 |
||
|
16
|
16
901-09105-54-00
Bolt
|
901-09105-54-00 |
— | ||
| replacement | |||||
|
16
|
16
90109-10453-00 Bolt (1M1) |
90109-10453-00 |
from US $10.48 |
||
|
17
|
17
90201-10126-00 Washer, Plate |
90201-10126-00 |
from US $2.69 |
||
| replacement | |||||
|
17
|
17
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
18
|
18
95602-10100-00 Nut, U |
95602-10100-00 |
from US $4.11 |
||
| replacement | |||||
|
18
|
18
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
19
|
19
90240-12091-00
Pin, Clevis
|
90240-12091-00 |
— | ||
|
20
|
20
92902-12600-00 Washer, Plate |
92902-12600-00 |
from US $1.26 |
||
| replacement | |||||
|
20
|
20
92907-12600-00 Washer, Plate |
92907-12600-00 |
from US $1.42 |
||
|
21
|
21
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
