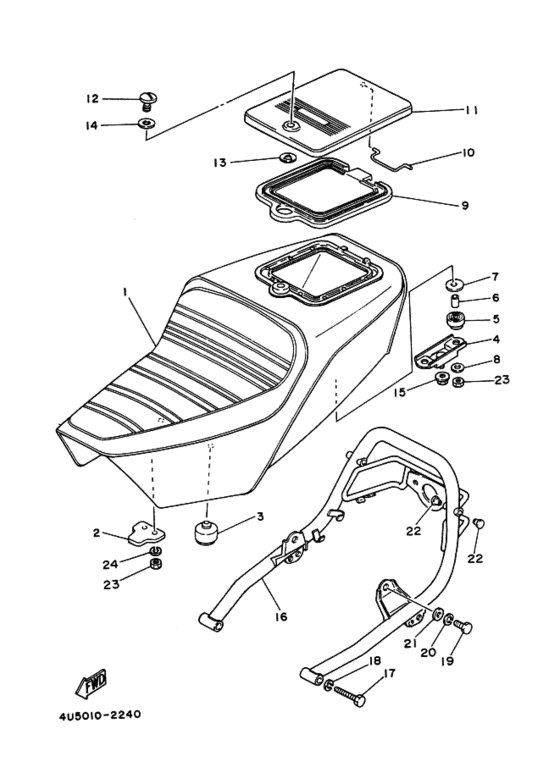

Seat Diagram Yamaha RX50
- Year
- 1982
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4U50
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- RX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U5-W2473-01-00
Semi-Dbl-Seat Assembly
セミダブルシートアセンブリ; |
4U5-W2473-01-00 |
— | ||
|
2
|
2
1M1-24748-00-00
Bracket, Seat
ブラケツト，シート; |
1M1-24748-00-00 |
— | ||
|
3
|
3
1T4-24741-00-00 Pad, Seatパツド，シート; |
1T4-24741-00-00 |
from US $2.83 |
||
|
4
|
4
4U5-24738-01-00
Bracket, Seat
ブラケツト，シート; |
4U5-24738-01-00 |
— | ||
|
5
|
5
2H7-24723-00-00
Damper, Seat
ダンパ，シート; |
2H7-24723-00-00 |
— | ||
|
6
|
6
90387-06553-00 Collar (1M1)カラー; |
90387-06553-00 |
from US $1.56 |
||
|
7
|
7
90201-06075-00 Washer, Plateワツシヤ，プレート; |
90201-06075-00 |
from US $1.20 |
||
| replacement | |||||
|
7
|
7
90201-06074-00 Washer, Plateワツシヤ，プレート; |
90201-06074-00 |
from US $1.20 |
||
|
8
|
8
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $0.77 |
||
| replacement | |||||
|
8
|
8
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.38 |
||
|
9
|
9
4U5-2475M-01-00
Seal
シール; |
4U5-2475M-01-00 |
— | ||
|
10
|
10
4U5-24769-00-00
Hinge, Seat
ヒンジ，シート; |
4U5-24769-00-00 |
— | ||
|
11
|
11
4U5-2473T-01-00
Lid 1
|
4U5-2473T-01-00 |
— | ||
|
12
|
12
90146-06012-00 Screw, Oval Fillister |
90146-06012-00 |
from US $0.77 |
||
| replacement | |||||
|
12
|
12
90149-06223-00 Screw |
90149-06223-00 |
from US $0.77 |
||
|
13
|
13
4U5-2176E-00-00 Plateプレート; |
4U5-2176E-00-00 |
from US $1.87 |
||
|
14
|
14
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $0.77 |
||
| replacement | |||||
|
14
|
14
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.38 |
||
|
15
|
15
4U5-24735-00-00
Speed Nut
スピードナツト; |
4U5-24735-00-00 |
— | ||
|
16
|
16
4U5-24773-04-00
Handle, Seat
ハンドル，シート; |
4U5-24773-04-00 |
— | ||
|
17
|
17
97301-08045-00 Bolt |
97301-08045-00 |
from US $3.25 |
||
| replacement | |||||
|
17
|
17
97013-08045-00 Bolt |
97013-08045-00 |
from US $3.25 |
||
|
18
|
18
92901-08100-00 Washer, Springワツシヤ，スプリング; |
92901-08100-00 |
from US $1.35 |
||
| replacement | |||||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $0.58 |
||
|
19
|
19
97301-08016-00 Bolt |
97301-08016-00 |
US $3.68 |
||
| replacement | |||||
|
19
|
19
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.26 |
||
|
20
|
20
92901-08100-00 Washer, Springワツシヤ，スプリング; |
92901-08100-00 |
from US $1.35 |
||
| replacement | |||||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $0.58 |
||
|
21
|
21
929-01086-00-00
Washer
ワツシヤ，プレート; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $0.68 |
||
|
22
|
22
90338-07011-00 Plug |
90338-07011-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
90338-07124-00 Plug |
90338-07124-00 |
from US $1.56 |
||
|
23
|
23
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $0.77 |
||
| replacement | |||||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.77 |
||
|
24
|
24
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
from US $0.77 |
||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.77 |
||
