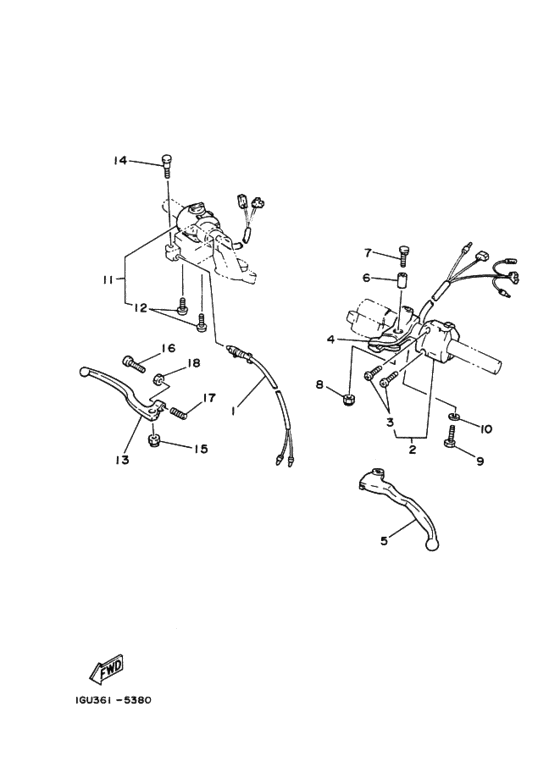

Handle switch & lever Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
1
|
1
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
|
2
|
2
10W-83973-20-00
Switch, Handle 3
|
10W-83973-20-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
98506-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.34 |
||
|
4
|
4
57V-82911-00-00 Holder, Lever 1 (31A-82911-00)ホルダ，レバー １; |
57V-82911-00-00 |
from US $29.14 |
||
|
5
|
5
31A-83912-00-00 Leverレバー １; |
31A-83912-00-00 |
from US $27.77 |
||
| replacement | |||||
|
5
|
5
31A-83912-01-00 Lever 1レバー １; |
31A-83912-01-00 |
from US $27.77 |
||
|
6
|
6
31A-83913-00-00 Collar, Lever 1カラー，レバー １; |
31A-83913-00-00 |
from US $10.48 |
||
|
7
|
7
31A-83945-00-00 Bolt, Leverボルト，レバー; |
31A-83945-00-00 |
from US $7.45 |
||
|
8
|
8
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.21 |
||
|
9
|
9
97306-06022-00 Bolt |
97306-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.34 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
10W-83975-20-00
Switch, Handle 2
|
10W-83975-20-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
98506-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.34 |
||
|
13
|
13
31A-83922-00-00 Lever Rレバー ２; |
31A-83922-00-00 |
from US $25.64 |
||
|
14
|
14
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.34 |
||
|
15
|
15
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.21 |
||
|
16
|
16
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90149-06131-00 Screw |
90149-06131-00 |
from US $1.70 |
||
|
17
|
17
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.56 |
||
|
18
|
18
90170-06010-00 Nut |
90170-06010-00 |
from US $1.84 |
||
