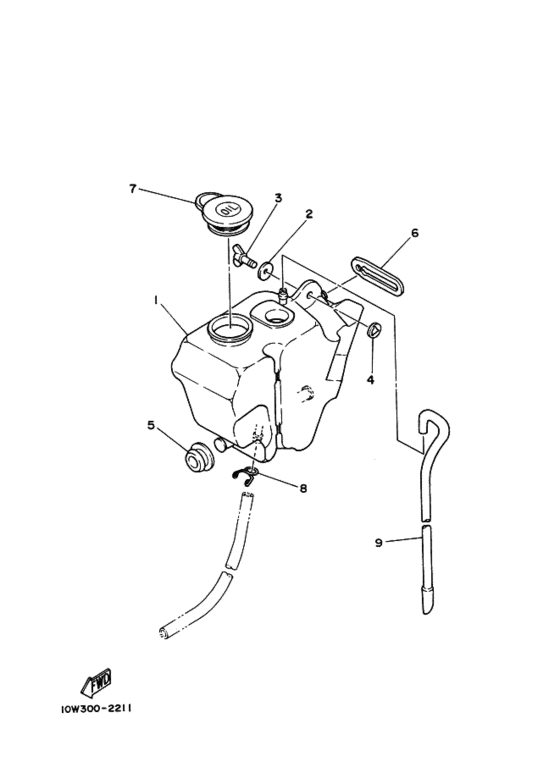

Oil tank Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10W-21751-00-00
Tank, Oil
|
10W-21751-00-00 |
— | ||
|
2
|
2
90201-06557-00 Washer, Plateワツシヤ，プレート; |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
3
|
3
90122-06015-00
Bolt, Wing
|
90122-06015-00 |
— | ||
|
4
|
4
4U5-2176E-00-00 Plateプレート; |
4U5-2176E-00-00 |
from US $3.40 |
||
|
5
|
5
90480-18277-00 Grommet |
90480-18277-00 |
from US $2.69 |
||
|
6
|
6
4L0-2172E-00-00
Stay, Side Cover 1
ステー，サイドカバー ２; |
4L0-2172E-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
ステー，サイドカバー ２; |
999-99999-99-00 |
— | ||
|
7
|
7
10V-21771-00-00 Body, Capボデイ，キヤツプ; |
10V-21771-00-00 |
from US $21.82 |
||
|
8
|
8
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
9
|
9
4L0-24317-01-00
Pipe 7
|
4L0-24317-01-00 |
— | ||
