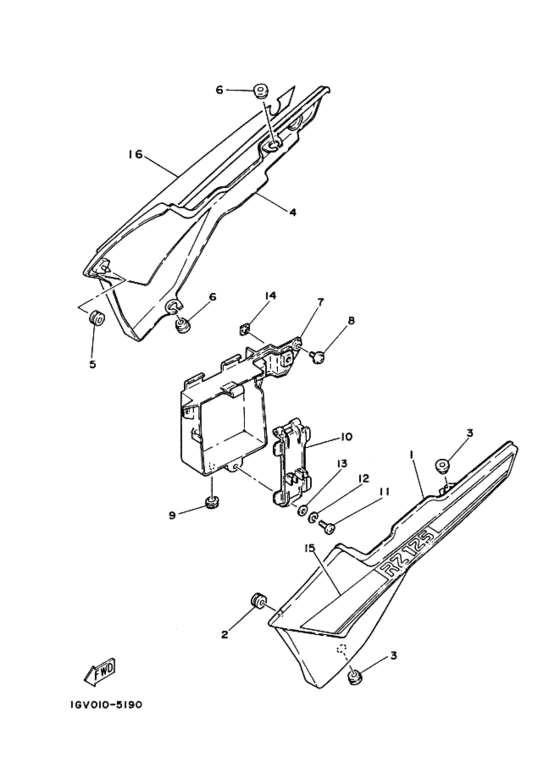

Side cover Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10W-21711-00-36
Cover, Side 1
カバー，サイド １; ホワイト |
10W-21711-00-36 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
カバー，サイド １; ホワイト |
999-99999-99-00 |
— | ||
|
2
|
2
90480-13197-00 Grommet |
90480-13197-00 |
from US $2.27 |
||
| replacement | |||||
|
2
|
2
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
3
|
3
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
4
|
4
10W-21721-00-36
Cover, Side 2
カバー，サイド ２; ホワイト |
10W-21721-00-36 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
カバー，サイド ２; ホワイト |
999-99999-99-00 |
— | ||
|
5
|
5
90480-13197-00 Grommet |
90480-13197-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
6
|
6
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
7
|
7
10W-2177G-00-00
Box, Battery
ボツクス，バツテリ; |
10W-2177G-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
ボツクス，バツテリ; |
999-99999-99-00 |
— | ||
|
8
|
8
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
8
|
8
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
9
|
9
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
9
|
9
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.83 |
||
|
10
|
10
4L0-21543-01-00
Plate 1
プレート １; |
4L0-21543-01-00 |
— | ||
|
11
|
11
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
11
|
11
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
11
|
11
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
12
|
12
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
92990-05200-00 Washer, Plainワツシヤ，プレーン; |
92990-05200-00 |
from US $1.34 |
||
|
14
|
14
4G0-21736-00-00
Nut,plate
ナツト，プレーン; |
4G0-21736-00-00 |
— | ||
|
15
|
15
1GV-2173E-00-00
Graphic 1
グラフイツク １; ＵＲ チヤピーレツドフエンダーヨウ |
1GV-2173E-00-00 |
— | ||
|
15
|
15
1GV-2173E-10-00
Graphic 1
グラフイツク １; ＵＲ クールブルーフエンダーヨウ |
1GV-2173E-10-00 |
— | ||
|
16
|
16
1GV-2173F-00-00
Graphic 2
グラフイツク ２; ＵＲ チヤピーレツドフエンダーヨウ |
1GV-2173F-00-00 |
— | ||
|
16
|
16
1GV-2173F-10-00
Graphic 2
グラフイツク ２; ＵＲ クールブルーフエンダーヨウ |
1GV-2173F-10-00 |
— | ||
