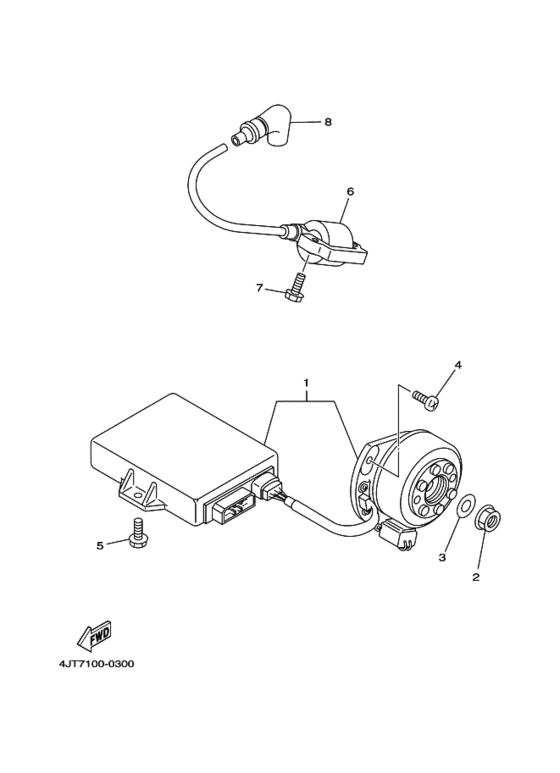

Generator Diagram Yamaha TZ125
- Year
- 2000
- Colour
- White (WW; 0036)
- Model code
- 4JT7
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-85501-60-00 C.d.i. Magneto SetＣ．Ｄ．Ｉ． ＭＡＧＮＥＴＯ ＳＥＴ; |
4JT-85501-60-00 |
from US $1,938.47 |
||
|
2
|
2
90179-12248-00 NutＮＵＴ; |
90179-12248-00 |
from US $4.34 |
||
| replacement | |||||
|
2
|
2
90179-12657-00 NutＮＵＴ; |
90179-12657-00 |
from US $6.52 |
||
|
3
|
3
90201-127E1-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
90201-125L6-00 Washer, Plate(1Re)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-125L6-00 |
from US $1.84 |
||
|
4
|
4
90149-06184-00 Screw, BindingＳＣＲＥＷ; |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
90149-06306-00 ScrewＳＣＲＥＷ; |
90149-06306-00 |
from US $2.27 |
||
|
5
|
5
950-27060-20-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
950-27060-20-00 |
from US $1.42 |
||
|
6
|
6
4DP-82310-00-00
Ignition Coil Asy
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
4DP-82310-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4DP-82320-00-00
Ignition Coil Assy
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
4DP-82320-00-00 |
— | ||
|
7
|
7
950-27060-20-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
950-27060-20-00 |
from US $1.42 |
||
|
8
|
8
4PE-82370-10-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
4PE-82370-10-00 |
from US $28.34 |
||
| replacement | |||||
|
8
|
8
8DG-82370-00-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
8DG-82370-00-00 |
from US $28.34 |
||
