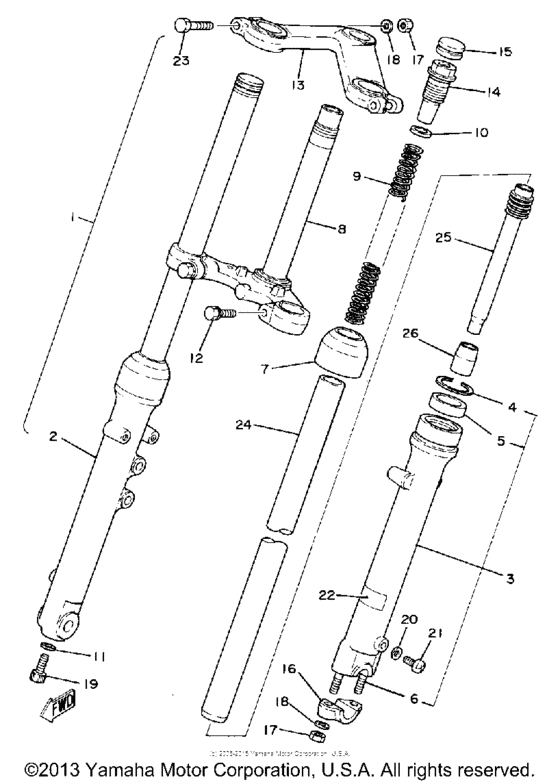

Front fork Diagram Yamaha TZ125
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 125
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V3-23101-00-00
Front Fork Assembly
|
3V3-23101-00-00 |
— | ||
|
2
|
2
3V3-23136-00-00
Tube, Outer 2
|
3V3-23136-00-00 |
— | ||
|
3
|
3
3V3-23126-00-00
Tube, Outer 1
|
3V3-23126-00-00 |
— | ||
|
4
|
4
3V3-23156-00-00 Ring, Snap |
3V3-23156-00-00 |
from US $6.09 |
||
|
5
|
5
33J-23145-00-00 Oil Seal |
33J-23145-00-00 |
from US $20.97 |
||
|
6
|
6
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
7
|
7
535-23144-00-00 Seal, Dust |
535-23144-00-00 |
from US $14.48 |
||
| replacement | |||||
|
7
|
7
535-F3144-00-00
Seal Dust (535-23144-00) Dt100
|
535-F3144-00-00 |
— | ||
|
8
|
8
3V3-23340-00-00
Under Bracket
|
3V3-23340-00-00 |
— | ||
|
9
|
9
3V3-23141-00-00
Spring, Front Fork
|
3V3-23141-00-00 |
— | ||
|
10
|
10
3V3-23149-00-00
Washer, Spring Upr
|
3V3-23149-00-00 |
— | ||
|
11
|
11
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
12
|
12
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
12
|
12
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
13
|
13
3V3-23435-00-38
Crown, Handle
|
3V3-23435-00-38 |
— | ||
|
14
|
14
3V3-23111-00-00
Bolt, Cap
|
3V3-23111-00-00 |
— | ||
|
15
|
15
409-23168-00-00
Cap, Front Fork
|
409-23168-00-00 |
— | ||
|
16
|
16
291-23167-61-00
Holder, Axle (291-23167-60)
291-23167-60 |
291-23167-61-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
291-23167-60 |
999-99999-99-00 |
— | ||
|
17
|
17
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
18
|
18
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
19
|
19
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
19
|
19
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
20
|
20
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
21
|
21
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
21
|
21
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
21
|
21
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
22
|
22
1T3-23197-50-00
Label, Caution 3
|
1T3-23197-50-00 |
— | ||
|
23
|
23
90101-08263-00
Bolt
|
90101-08263-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
3V3-23110-00-00
Inner Tube 1
|
3V3-23110-00-00 |
— | ||
|
25
|
25
3V3-23170-00-00
Cylinder, Frtfrk
|
3V3-23170-00-00 |
— | ||
|
26
|
26
3V3-23173-00-00
Spindle, Taper
|
3V3-23173-00-00 |
— | ||
