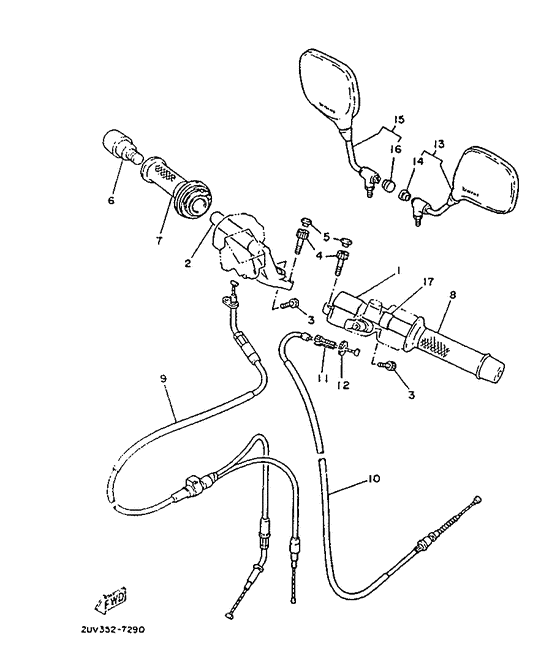

Manillar-cables Diagram Yamaha TZR80
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2UV
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2RN-F6121-00-35
Handlebar (Left)
Plateado |
2RN-F6121-00-35 |
— | ||
| replacement | |||||
|
01
|
01
1GU-26121-00-35
Handlebar (Left)
Plateado |
1GU-26121-00-35 |
— | ||
|
02
|
02
2RN-F6122-00-35
Handlebar (Right)
Plateado |
2RN-F6122-00-35 |
— | ||
| replacement | |||||
|
02
|
02
1GU-26122-01-35
Handlebar (Right)
Plateado |
1GU-26122-01-35 |
— | ||
|
03
|
03
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
03
|
03
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
04
|
04
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
04
|
04
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
05
|
05
2RN-F3469-00-00
Cap, Bolt
|
2RN-F3469-00-00 |
— | ||
|
06
|
06
2RN-F6246-00-00
End, Grip
|
2RN-F6246-00-00 |
— | ||
|
07
|
07
2RN-F6240-00-00
Grip Assy
|
2RN-F6240-00-00 |
— | ||
|
08
|
08
2RN-F6241-00-00
Grip
|
2RN-F6241-00-00 |
— | ||
|
09
|
09
2UV-F6260-00-00
Cable Assy, Throttle & Pump
|
2UV-F6260-00-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
2UV-F6335-00-00
Cable, clutch
|
2UV-F6335-00-00 |
— | ||
|
11
|
11
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
12
|
12
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
12
|
12
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
13
|
13
36Y-26290-G0-00
Mirror Assembly Lh
|
36Y-26290-G0-00 |
— | ||
|
14
|
14
36Y-26133-00-00
Cap, Mirror
|
36Y-26133-00-00 |
— | ||
|
15
|
15
36Y-26290-T0-00 Mirror Assembly Rh |
36Y-26290-T0-00 |
from US $63.83 |
||
|
16
|
16
36Y-26133-00-00
Cap, Mirror
|
36Y-26133-00-00 |
— | ||
|
17
|
17
90387-22591-00 Collar |
90387-22591-00 |
from US $5.38 |
||
