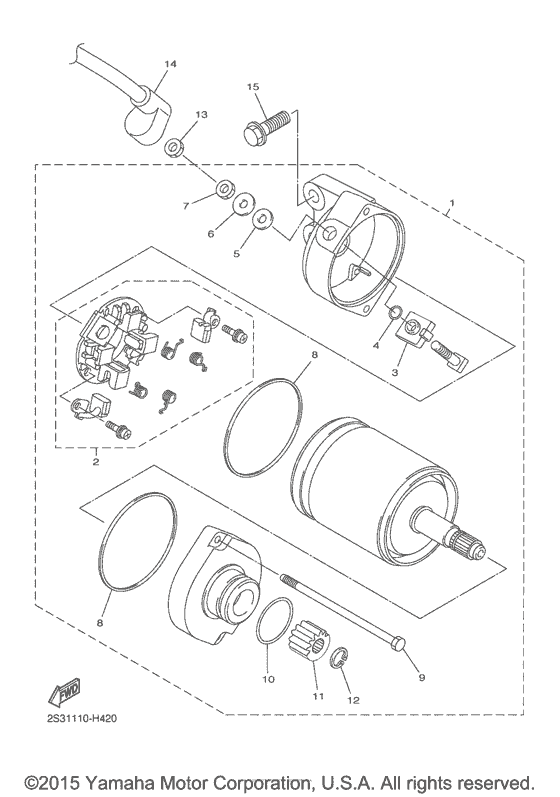

Starting motor Diagram Yamaha VMX17 V-MAX
- Year
- 2016
- Colour
- Deep Purplish Blue Metallic L
- Model code
- 2CEG
- Sales region
- USA
- Базовая модель
- VMX17GL
- Engine Capacity
- 1700
- Model
- VMX17
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S3-81890-00-00 Motor Assy |
2S3-81890-00-00 |
from US $792 |
||
|
2
|
2
2S3-81801-00-00 Brush Set |
2S3-81801-00-00 |
from US $57.47 |
||
|
3
|
3
2S3-8182G-00-00 Bush, Terminal |
2S3-8182G-00-00 |
from US $4.39 |
||
|
4
|
4
93210-06001-00 O-Ring |
93210-06001-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
5
|
5
8FA-8181L-00-00 Washer, Plain |
8FA-8181L-00-00 |
from US $3.40 |
||
|
6
|
6
1D7-81835-00-00 Washer |
1D7-81835-00-00 |
from US $1.70 |
||
|
7
|
7
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
|
8
|
8
5PX-81861-00-00 Gasket |
5PX-81861-00-00 |
from US $7.65 |
||
|
9
|
9
8FA-81846-01-00 Screw |
8FA-81846-01-00 |
from US $4.11 |
||
|
10
|
10
93210-25711-00 O-Ring |
93210-25711-00 |
from US $3.04 |
||
|
11
|
11
5PX-15511-00-00 Gear, Starting Motor |
5PX-15511-00-00 |
from US $43.11 |
||
|
12
|
12
99009-10800-00 Circlip |
99009-10800-00 |
from US $1.56 |
||
|
13
|
13
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
13
|
13
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
13
|
13
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
|
14
|
14
2S3-8183G-00-00 Cord Comp |
2S3-8183G-00-00 |
from US $40.48 |
||
|
15
|
15
95022-08030-00 Bolt, Flange |
95022-08030-00 |
from US $1.42 |
||
