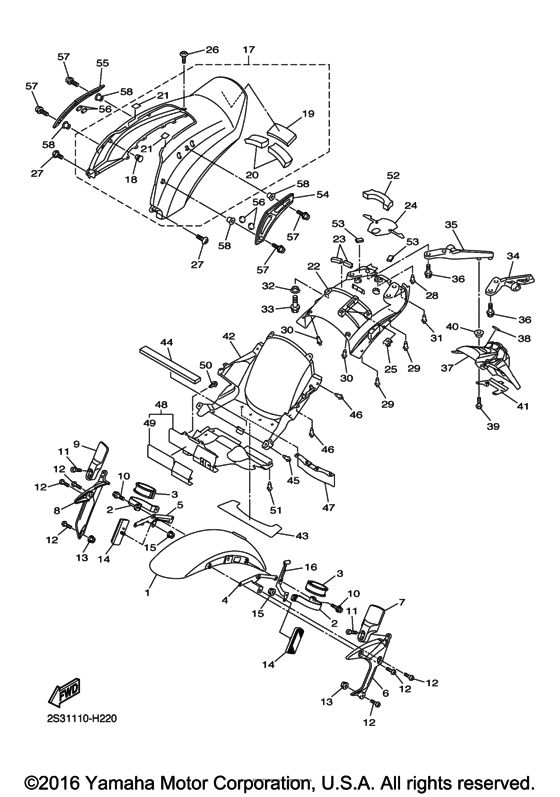

Fender Diagram Yamaha VMX17 V-MAX
- Year
- 2017
- Colour
- Vivid Red Cocktail 1
- Model code
- 2CES
- Sales region
- United States (California)
- Базовая модель
- VMX17HCR
- Engine Capacity
- 1700
- Model
- VMX17
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S3-21511-00-P8 FENDER, FRONTUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
2S3-21511-00-P8 |
from US $146.66 |
||
|
2
|
2
2S3-21513-00-00 Stay, Fender 1 |
2S3-21513-00-00 |
from US $74.47 |
||
|
3
|
3
2S3-21541-00-00 Damper 1 |
2S3-21541-00-00 |
from US $5.95 |
||
|
4
|
4
2S3-21512-00-00 Bracket, Fender |
2S3-21512-00-00 |
from US $28.48 |
||
|
5
|
5
2S3-21586-00-00 Bracket |
2S3-21586-00-00 |
US $43.83 |
||
|
6
|
6
2S3-23361-00-P0 Arm 1Use for Color Silver 8 ( S8 / 0895 ) |
2S3-23361-00-P0 |
from US $116.75 |
||
|
7
|
7
2S3-2110M-00-P1 Cover Assy 1Use for Color MAT BLACK 2 ( MBL2 / 0582 ) |
2S3-2110M-00-P1 |
from US $47.94 |
||
|
8
|
8
2S3-23371-00-P0 Arm 2Use for Color Silver 8 ( S8 / 0895 ) |
2S3-23371-00-P0 |
from US $116.75 |
||
|
9
|
9
2S3-2110N-00-P1 Cover Assy 2Use for Color MAT BLACK 2 ( MBL2 / 0582 ) |
2S3-2110N-00-P1 |
from US $47.94 |
||
|
10
|
10
90110-06342-00 Bolt, Hexagon Socket Head |
90110-06342-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90110-06152-00 Bolt, Hexagon Socket Head |
90110-06152-00 |
from US $1.70 |
||
|
11
|
11
91314-06014-00 Bolt, Hexagon Socket Head |
91314-06014-00 |
from US $1.56 |
||
|
12
|
12
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
13
|
13
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
14
|
14
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.12 |
||
|
15
|
15
95604-05200-00 Nut, U Flange |
95604-05200-00 |
from US $2.55 |
||
|
16
|
16
2S3-85112-01-00 Bracket, Reflector 1 |
2S3-85112-01-00 |
from US $20.83 |
||
|
17
|
17
2S3-21600-00-P8 REAR FENDER ASSYUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
2S3-21600-00-P8 |
US $441.88 |
||
|
18
|
18
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
18
|
18
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
19
|
19
2S3-84553-00-00 Damper |
2S3-84553-00-00 |
from US $1.70 |
||
|
20
|
20
2S3-2112D-00-00 Damper 3 |
2S3-2112D-00-00 |
from US $3.68 |
||
|
21
|
21
1UF-15379-00-00 Seal |
1UF-15379-00-00 |
from US $1.70 |
||
|
22
|
22
2S3-2162R-00-00 Fender 2 |
2S3-2162R-00-00 |
from US $35.14 |
||
|
23
|
23
2S3-28347-00-00 Mole 3 |
2S3-28347-00-00 |
from US $2.41 |
||
|
24
|
24
2S3-21669-00-00 Seal |
2S3-21669-00-00 |
from US $21.25 |
||
|
25
|
25
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
26
|
26
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
26
|
26
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
27
|
27
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
27
|
27
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
28
|
28
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
29
|
29
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
30
|
30
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
31
|
31
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
32
|
32
90387-07027-00 Collar |
90387-07027-00 |
from US $3.83 |
||
|
33
|
33
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.36 |
||
|
34
|
34
2S3-21689-00-00 Bracket, Rear Stay 2 |
2S3-21689-00-00 |
from US $160.27 |
||
|
35
|
35
2S3-2161A-00-00 Bracket 3 |
2S3-2161A-00-00 |
from US $160.27 |
||
|
36
|
36
95814-06020-00 Bolt, Flange |
95814-06020-00 |
from US $1.36 |
||
|
37
|
37
2S3-21629-00-00 Guard, Mud |
2S3-21629-00-00 |
from US $33.44 |
||
|
38
|
38
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $18.18 |
||
|
39
|
39
92014-06016-00 Bolt, Button Head |
92014-06016-00 |
from US $1.42 |
||
|
40
|
40
90387-06242-00 Collar |
90387-06242-00 |
from US $4.11 |
||
|
41
|
41
2S3-2164F-00-00 Stay 1 |
2S3-2164F-00-00 |
from US $11.48 |
||
|
42
|
42
2S3-2163A-00-00 Cover, Rear Fender 1 |
2S3-2163A-00-00 |
from US $46.28 |
||
|
43
|
43
2S3-2172P-00-00 Seat |
2S3-2172P-00-00 |
from US $12.13 |
||
|
44
|
44
2S3-2414N-00-00 Damper, Plate 4 |
2S3-2414N-00-00 |
from US $1.56 |
||
|
45
|
45
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
46
|
46
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
47
|
47
2S3-21621-00-00 Flap |
2S3-21621-00-00 |
from US $10.77 |
||
|
48
|
48
2S3-2476U-00-00 Protector 1 |
2S3-2476U-00-00 |
from US $41.17 |
||
|
49
|
49
2S3-24193-00-00 Seat, Tank Protector |
2S3-24193-00-00 |
from US $15.58 |
||
|
50
|
50
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
51
|
51
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
52
|
52
2S3-2112C-00-00 Damper 2 |
2S3-2112C-00-00 |
from US $5.10 |
||
|
53
|
53
2S3-2112J-00-00 Damper 4 |
2S3-2112J-00-00 |
from US $1.35 |
||
|
54
|
54
2S3-2171E-00-00 Cover, Side 5 |
2S3-2171E-00-00 |
from US $93.53 |
||
|
55
|
55
2S3-2171X-00-00 Cover, Side 6 |
2S3-2171X-00-00 |
from US $93.53 |
||
|
56
|
56
2S3-21747-00-00 Damper |
2S3-21747-00-00 |
from US $1.56 |
||
|
57
|
57
90110-05057-00 Bolt, Hexagon Socket Head |
90110-05057-00 |
from US $1.43 |
||
|
58
|
58
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
