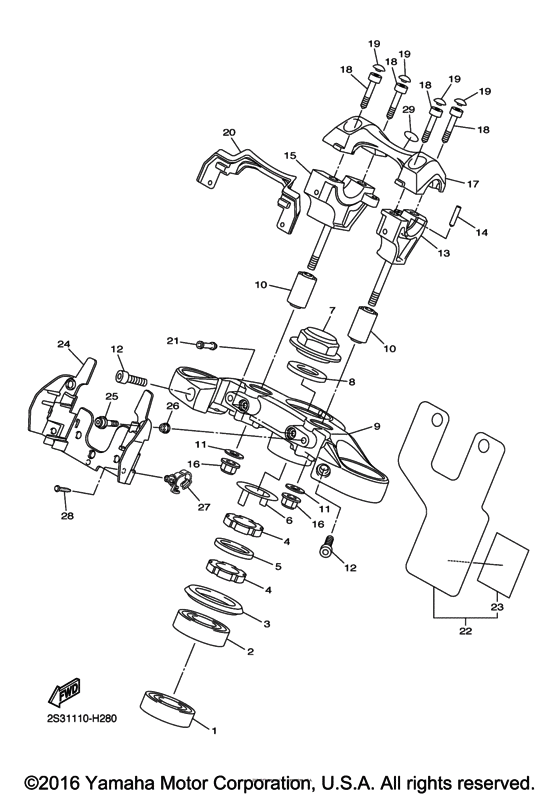

Steering Diagram Yamaha VMX17 V-MAX
- Year
- 2017
- Colour
- Vivid Red Cocktail 1
- Model code
- 2CES
- Sales region
- United States (California)
- Базовая модель
- VMX17HCR
- Engine Capacity
- 1700
- Model
- VMX17
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.92 |
||
|
2
|
2
93332-00068-00 Bearing |
93332-00068-00 |
from US $50.98 |
||
| replacement | |||||
|
2
|
2
93332-00078-00 Bearing(4Ew) |
93332-00078-00 |
from US $50.98 |
||
|
3
|
3
4EW-23416-00-00 Cover, Ball Race 2 |
4EW-23416-00-00 |
from US $11.46 |
||
|
4
|
4
90179-28011-00 Nut |
90179-28011-00 |
from US $17.28 |
||
|
5
|
5
90202-28216-00 Washer, Plate |
90202-28216-00 |
from US $3.83 |
||
|
6
|
6
4GY-23418-00-00 Washer, Special |
4GY-23418-00-00 |
from US $11.33 |
||
|
7
|
7
90179-22009-00 Nut |
90179-22009-00 |
from US $30.29 |
||
|
8
|
8
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.39 |
||
|
9
|
9
2S3-23435-00-00 Crown, Handle |
2S3-23435-00-00 |
from US $233.82 |
||
|
10
|
10
3VD-23434-00-00 Holder, Damper |
3VD-23434-00-00 |
from US $17.85 |
||
| replacement | |||||
|
10
|
10
5A8-23434-01-00 Holder, Damper |
5A8-23434-01-00 |
from US $17.85 |
||
|
11
|
11
90201-10626-00 Washer, Plate |
90201-10626-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
90201-106M5-00 Washer, Plate |
90201-106M5-00 |
from US $2.13 |
||
|
12
|
12
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
13
|
13
2S3-23857-01-00 Holder |
2S3-23857-01-00 |
from US $122.55 |
||
|
14
|
14
91609-50020-00 Pin, Spring |
91609-50020-00 |
from US $2.36 |
||
|
15
|
15
2S3-23867-01-00 Holder 2 |
2S3-23867-01-00 |
from US $122.55 |
||
|
16
|
16
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
17
|
17
2S3-23441-01-00 Holder, Handle Upper |
2S3-23441-01-00 |
from US $98.75 |
||
| replacement | |||||
|
17
|
17
2S3-23441-00-00 Holder, Handle Upper |
2S3-23441-00-00 |
from US $115.64 |
||
|
18
|
18
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
19
|
19
90338-08163-00 Plug (Crome) |
90338-08163-00 |
from US $3.40 |
||
|
20
|
20
2S3-23465-00-00 Damper |
2S3-23465-00-00 |
from US $19.84 |
||
|
21
|
21
2S3-23448-00-00 Spacer |
2S3-23448-00-00 |
from US $21.68 |
||
|
22
|
22
2S3-2314H-00-00 Protecter Comp., 1 |
2S3-2314H-00-00 |
US $19.84 |
||
|
23
|
23
2S3-2317A-00-00 Patch |
2S3-2317A-00-00 |
from US $7.37 |
||
|
24
|
24
2S3-23389-00-00 Guide, Cable |
2S3-23389-00-00 |
from US $11.62 |
||
|
25
|
25
90110-06025-00 Bolt, Hexagon Socket Head |
90110-06025-00 |
from US $2.98 |
||
| replacement | |||||
|
25
|
25
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
26
|
26
90387-06210-00 Collar |
90387-06210-00 |
from US $3.83 |
||
|
27
|
27
90464-18002-00 Clamp |
90464-18002-00 |
from US $1.70 |
||
|
28
|
28
90269-03002-00 Rivet |
90269-03002-00 |
from US $1.70 |
||
|
29
|
29
5GT-2836B-00-00 Tuning Fork Mark |
5GT-2836B-00-00 |
from US $11.33 |
||
| replacement | |||||
|
29
|
29
5GT-2836B-10-00 Tuning Fork Mark |
5GT-2836B-10-00 |
from US $11.33 |
||
