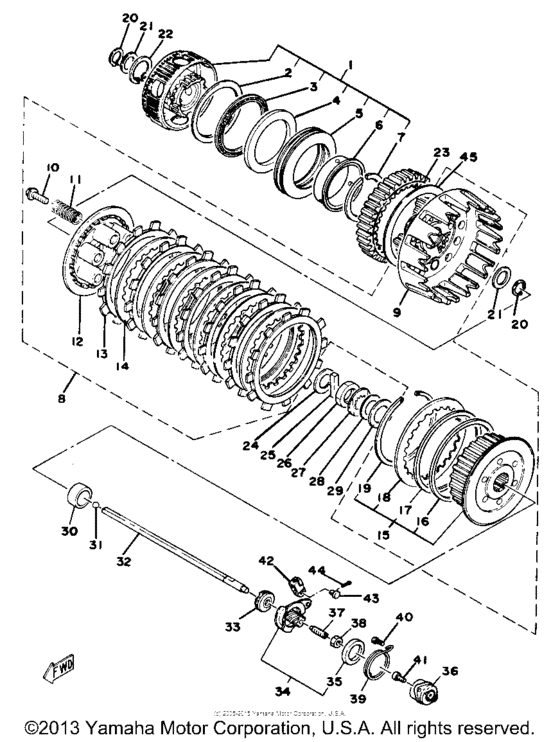

Clutch Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2F3-16306-01-00
Clutch Damper Assembly
|
2F3-16306-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90201-76604-00
Washer, Plate
|
90201-76604-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
93340-27601-00
Bearing, Flat #40
#40 |
93340-27601-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
#40 |
999-99999-99-00 |
— | ||
|
4
|
4
90201-69603-00
Washer, Plate
|
90201-69603-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
1J7-16318-00-00
Spring, Damper
|
1J7-16318-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
90387-64672-00
Collar
|
90387-64672-00 |
— | ||
|
7
|
7
93440-64047-00
Circlip, Outer
|
93440-64047-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1T5-16301-02-00
Clutch Assembly
|
1T5-16301-02-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1J7-16310-03-00
Clutch Housing Assembly
|
1J7-16310-03-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90159-06010-00 Screw, With Washer |
90159-06010-00 |
from US $1.56 |
||
|
11
|
11
90501-23142-00 Spring, Compression |
90501-23142-00 |
from US $3.32 |
||
|
12
|
12
1J7-16351-00-00
Plate, Pressure 1
|
1J7-16351-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
4H7-16321-01-00
Plate, Friction
|
4H7-16321-01-00 |
— | ||
| replacement | |||||
|
13
|
13
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $12.58 |
||
|
14
|
14
4H7-16325-00-00
Plate, Clutch 2 (T=1.6)
T=1.6 |
4H7-16325-00-00 |
— | ||
| replacements | |||||
|
14
|
14
168-16325-00-00 Plate, Clutch 2 (T1.6)T=1.6 |
168-16325-00-00 |
from US $10.89 |
||
|
14
|
14
168-16325-10-00 PLATE CLUTCH 2T=1.6 |
168-16325-10-00 |
from US $10.92 |
||
|
16
|
16
1J7-16384-00-00 Plate, Seat |
1J7-16384-00-00 |
from US $12.18 |
||
|
17
|
17
1J7-16383-01-00 Spring.,cushion |
1J7-16383-01-00 |
US $46.12 |
||
|
18
|
18
4H7-16325-00-00
Plate, Clutch 2 (T=1.6)
T=1.6 |
4H7-16325-00-00 |
— | ||
| replacements | |||||
|
18
|
18
168-16325-00-00 Plate, Clutch 2 (T1.6)T=1.6 |
168-16325-00-00 |
from US $10.89 |
||
|
18
|
18
168-16325-10-00 PLATE CLUTCH 2T=1.6 |
168-16325-10-00 |
from US $10.92 |
||
|
19
|
19
1J7-16385-00-00 Ring Set |
1J7-16385-00-00 |
from US $10.63 |
||
|
20
|
20
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
21
|
21
90201-21599-00
Washer, Plate
|
90201-21599-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
93440-31068-00
Circlip, Outer
|
93440-31068-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
2F3-16151-01-00
Gear, Pri Driven
|
2F3-16151-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90201-22625-00
Washer, Plate
|
90201-22625-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
1J7-16356-01-00
Rod, Push 1
|
1J7-16356-01-00 |
— | ||
|
26
|
26
90170-24203-00
Nut, Hexagon
|
90170-24203-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
90215-21130-00
Washer, Lock
|
90215-21130-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
90208-25021-00
Washer, Conical Spr
|
90208-25021-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
90201-25291-00 Washer, Plate |
90201-25291-00 |
from US $1.56 |
||
|
30
|
30
90560-25160-00
Spacer
|
90560-25160-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
32
|
32
1J7-16357-01-00
Rod, Push 2
|
1J7-16357-01-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
931-02082-05-00
Oil Seal, Sd-Type
|
931-02082-05-00 |
— | ||
|
34
|
34
1J7-16340-01-00
Push Lever Assembly
|
1J7-16340-01-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
214-16347-01-00
Seal, Dust
|
214-16347-01-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
1J7-16304-00-00
Ball Scrw Hsng Assembly (256-16
256-16 |
1J7-16304-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
256-16 |
999-99999-99-00 |
— | ||
|
37
|
37
90113-08021-00 Bolt, Set |
90113-08021-00 |
from US $4.53 |
||
|
38
|
38
90179-08179-00 Nut |
90179-08179-00 |
from US $4.39 |
||
|
39
|
39
90508-18313-00
Spring, Torsion
|
90508-18313-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
41
|
41
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
42
|
42
214-16389-00-00 Joint |
214-16389-00-00 |
from US $9.49 |
||
|
43
|
43
90240-06005-00 Pin, Clevis |
90240-06005-00 |
from US $5.53 |
||
|
44
|
44
914-01100-15-00
Pin, Cotter
|
914-01100-15-00 |
— | ||
|
45
|
45
902-01996-93-00
Washer, Plate
|
902-01996-93-00 |
— | ||
