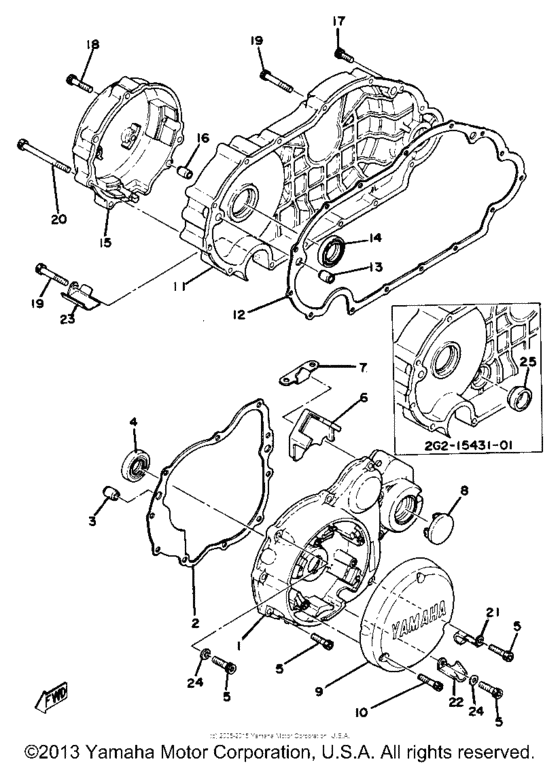

Crankcase cover Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2G2-15410-01-00
Crcs Cover Assembly L
|
2G2-15410-01-00 |
— | ||
|
2
|
2
1J7-15461-00-00 Gasket,crcs Cvr 2 |
1J7-15461-00-00 |
from US $22.88 |
||
| replacement | |||||
|
2
|
2
1J7-15461-10-00 Gasket, Crankcase Cover (L.h) |
1J7-15461-10-00 |
from US $26.21 |
||
|
3
|
3
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
4
|
4
931-02241-54-00
Oil Seal, Sd-Type
|
931-02241-54-00 |
— | ||
|
5
|
5
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
5
|
5
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
6
|
6
1J7-15474-00-00
Seal, Air Duct
|
1J7-15474-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
1J7-15497-00-00
Plate, Dust Seal
|
1J7-15497-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1J7-15417-02-00
Cover, Cap
|
1J7-15417-02-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
2K1-W0001-01-00
New Genuine Part
H1 FOR KIT COMPONENT |
2K1-W0001-01-00 |
— | ||
|
9
|
9
2G2-15416-00-00
Cover, Oil Pump
|
2G2-15416-00-00 |
— | ||
|
10
|
10
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
11
|
11
2H7-15361-00-00 Gauge, Level |
2H7-15361-00-00 |
from US $26.07 |
||
|
11
|
11
2F3-15363-00-00 Plug, Oil |
2F3-15363-00-00 |
from US $24.51 |
||
| replacement | |||||
|
11
|
11
371-15363-00-00 Plug, Oil |
371-15363-00-00 |
from US $14.89 |
||
|
11
|
11
4H1-15431-00-00
Cover, Crankcase 3
|
4H1-15431-00-00 |
— | ||
|
11
|
11
902-01207-22-00
Washer, Plate
|
902-01207-22-00 |
— | ||
|
11
|
11
999-99009-92-00
Crank Case Cover
|
999-99009-92-00 |
— | ||
|
12
|
12
1J7-15451-00-00 Gasket,crcs Cover |
1J7-15451-00-00 |
from US $34 |
||
| replacement | |||||
|
12
|
12
1J7-15451-10-00
Gasket, Crankcase Cover (R.h)
|
1J7-15451-10-00 |
— | ||
|
13
|
13
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
13
|
13
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
13
|
13
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
14
|
14
93102-25153-00 Oil Seal |
93102-25153-00 |
from US $9.63 |
||
| replacement | |||||
|
14
|
14
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
15
|
15
2G2-15415-00-00
Cover, Generator
|
2G2-15415-00-00 |
— | ||
|
16
|
16
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
16
|
16
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
17
|
17
913-16060-18-00
Bolt
|
913-16060-18-00 |
— | ||
| replacement | |||||
|
17
|
17
91317-06018-00 Bolt,socket |
91317-06018-00 |
from US $1.56 |
||
|
18
|
18
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
19
|
19
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
19
|
19
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
19
|
19
2K1-W0001-01-00
New Genuine Part
H1 FOR KIT COMPONENT |
2K1-W0001-01-00 |
— | ||
|
20
|
20
91316-06080-00 Bolt |
91316-06080-00 |
from US $2.99 |
||
| replacement | |||||
|
20
|
20
91317-06080-00 Bolt |
91317-06080-00 |
from US $3.29 |
||
|
21
|
21
90465-08116-00
Clamp
|
90465-08116-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
1T4-81624-00-00
Plate, Contact Brkr
|
1T4-81624-00-00 |
— | ||
|
23
|
23
90465-10113-00
Clamp
|
90465-10113-00 |
— | ||
|
24
|
24
90201-06431-00 Washer, Plate (371) |
90201-06431-00 |
from US $2.13 |
||
|
25
|
25
2H7-15361-00-00 Gauge, Level |
2H7-15361-00-00 |
from US $26.07 |
||
