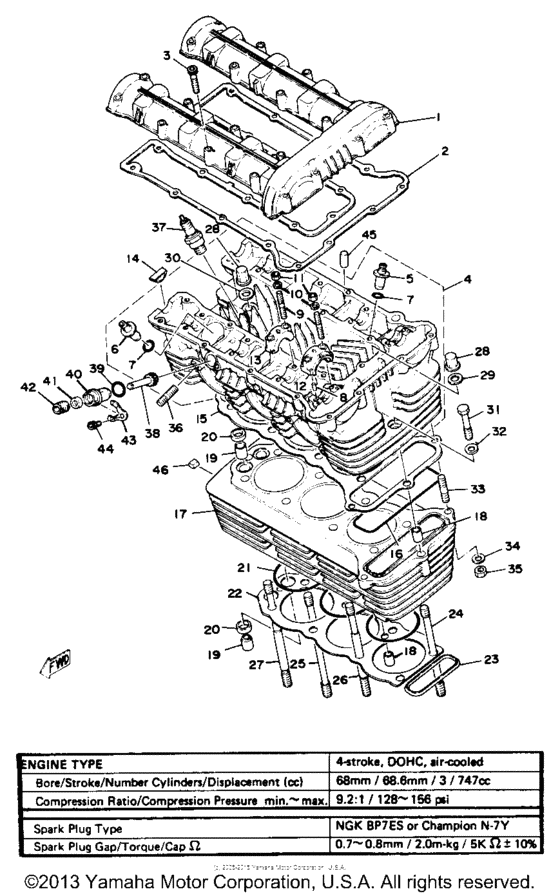

Cylinder head & cylinder Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2G2-11191-00-00
Cover, Cylinder.head 1
|
2G2-11191-00-00 |
— | ||
|
2
|
2
1J7-11193-00-00 Gasket,hd Cover1 |
1J7-11193-00-00 |
from US $38.43 |
||
| replacement | |||||
|
2
|
2
1J7-11193-10-00 Gasket, Cylinder Head Cover |
1J7-11193-10-00 |
US $43.09 |
||
|
3
|
3
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
3
|
3
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
3
|
3
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
3
|
3
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
4
|
4
2G2-11110-00-00
Cylinder Head Assembly
|
2G2-11110-00-00 |
— | ||
|
5
|
5
1J7-11133-10-00
Gde, Intk Vlv 1 O/s
O/S |
1J7-11133-10-00 |
— | ||
|
6
|
6
1J7-11134-10-00
Gde, Exst Vlv 1 O/s
O/S |
1J7-11134-10-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
O/S |
999-99999-99-00 |
— | ||
|
7
|
7
93210-11313-00 O-Ring (1J7) |
93210-11313-00 |
from US $6.94 |
||
|
8
|
8
93603-09004-00
Pin, Dowel
|
93603-09004-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90116-06228-00 Bolt, Stud |
90116-06228-00 |
from US $4.11 |
||
|
10
|
10
90201-06431-00 Washer, Plate (371) |
90201-06431-00 |
from US $2.13 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
11
|
11
2G2-W0001-90-00
Gsktkt Te Xs750E
TE XS750E |
2G2-W0001-90-00 |
— | ||
|
11
|
11
2K1-W0001-01-00
New Genuine Part
H1 FOR KIT COMPONENT |
2K1-W0001-01-00 |
— | ||
|
12
|
12
1J7-12173-10-00
Cap, Camshaft 1
|
1J7-12173-10-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
1J7-12183-10-00
Cap, Camshaft 2
|
1J7-12183-10-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1J7-11138-00-00 Plug |
1J7-11138-00-00 |
from US $17.57 |
||
|
15
|
15
2F3-11181-00-00 Gasket, Cyl Head 1 |
2F3-11181-00-00 |
US $144.74 |
||
| replacement | |||||
|
15
|
15
2F3-11181-10-00 Gasket, Cylinder Head |
2F3-11181-10-00 |
US $144.74 |
||
|
16
|
16
1J7-11355-00-00
Seal, Cylinder 1
|
1J7-11355-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2G2-11310-00-00
Cylinder
|
2G2-11310-00-00 |
— | ||
|
18
|
18
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
18
|
18
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
18
|
18
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
19
|
19
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
20
|
20
1J7-11357-00-00
Seal, Cylinder 3
|
1J7-11357-00-00 |
— | ||
|
21
|
21
93210-74316-00 O-Ring |
93210-74316-00 |
from US $2.66 |
||
|
22
|
22
1J7-11351-02-00
Gasket, Cylinder
|
1J7-11351-02-00 |
— | ||
| replacement | |||||
|
22
|
22
1J7-11351-12-00
Gasket, Cylinder
|
1J7-11351-12-00 |
— | ||
|
23
|
23
1J7-11356-00-00
Seal, Cylinder 2
|
1J7-11356-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90116-10273-00
Bolt, Stud
M10-154L |
90116-10273-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
M10-154L |
999-99999-99-00 |
— | ||
|
25
|
25
90116-10274-00
Bolt, Stud
M10-177L |
90116-10274-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
M10-177L |
999-99999-99-00 |
— | ||
|
26
|
26
2F3-11363-00-00
Bolt, Cylinder Holding 3
M10-154L |
2F3-11363-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
M10-154L |
999-99999-99-00 |
— | ||
|
27
|
27
2F3-11364-00-00
Bolt, Cylinder Holding 4
M10-177L |
2F3-11364-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
M10-177L |
999-99999-99-00 |
— | ||
|
28
|
28
90176-10049-00 Nut, Crown |
90176-10049-00 |
from US $4.39 |
||
| replacement | |||||
|
28
|
28
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
29
|
29
90201-10124-00 Washer, Plate |
90201-10124-00 |
from US $1.70 |
||
|
30
|
30
90201-10131-00 Washer Plate 256111740000 |
90201-10131-00 |
from US $1.28 |
||
|
31
|
31
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
31
|
31
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
32
|
32
90201-084G3-00 Washer, Plate |
90201-084G3-00 |
from US $5.67 |
||
|
33
|
33
90116-08161-00 Bolt, Stud |
90116-08161-00 |
from US $7.34 |
||
|
34
|
34
90201-084G3-00 Washer, Plate |
90201-084G3-00 |
from US $5.67 |
||
|
35
|
35
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
35
|
35
2G2-W0001-90-00
Gsktkt Te Xs750E
TE XS750E |
2G2-W0001-90-00 |
— | ||
|
35
|
35
2K1-W0001-01-00
New Genuine Part
FOR KIT COMPONENT |
2K1-W0001-01-00 |
— | ||
|
36
|
36
90116-08271-00
Bolt, Stud
|
90116-08271-00 |
— | ||
|
37
|
37
NGK-BP7ES-00-00 Bp7Es Ngk Splug 4P4P |
NGK-BP7ES-00-00 |
US $17.80 |
||
| replacements | |||||
|
37
|
37
BP7-ES000-00-00 "3/8"" X 15 DOCKLINE"4P |
BP7-ES000-00-00 |
US $17.80 |
||
|
37
|
37
BPR-7ES00-40-00 BPR7ES NGK - 4/PACK4P |
BPR-7ES00-40-00 |
US $22.04 |
||
|
37
|
37
CMP-N7YC0-00-00
Champion N7Yc 4Pk
N7YC 4PK |
CMP-N7YC0-00-00 |
— | ||
|
38
|
38
1J7-17841-00-00
Gear, Driven
|
1J7-17841-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
93210-15171-00 O-Ring |
93210-15171-00 |
from US $1.56 |
||
|
40
|
40
2F3-17811-00-00
Housing, Tach Gear
|
2F3-17811-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
93104-07036-00 Oil Seal, So-Type |
93104-07036-00 |
from US $5.67 |
||
|
42
|
42
256-17848-00-00
Adapter
|
256-17848-00-00 |
— | ||
|
43
|
43
1J7-17812-00-00
Stopper
|
1J7-17812-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
44
|
44
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
44
|
44
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
45
|
45
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.32 |
||
|
46
|
46
434-11161-00-00 Absorber 1 |
434-11161-00-00 |
from US $6.23 |
||
